DAC8426FSZ-REEL

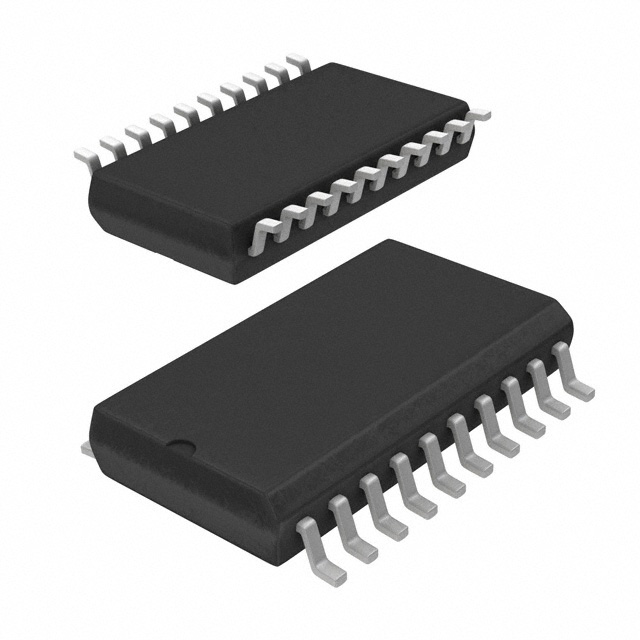

complete quad voltage output D/A converter, SOP, +17 V, DAC8426FSZ-REEL

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.55~6.77 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.55~6.77

PartNumber:: DAC8426FSZ-REEL

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DAC8426FSZ-REEL
US $3.55 - 6.77
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

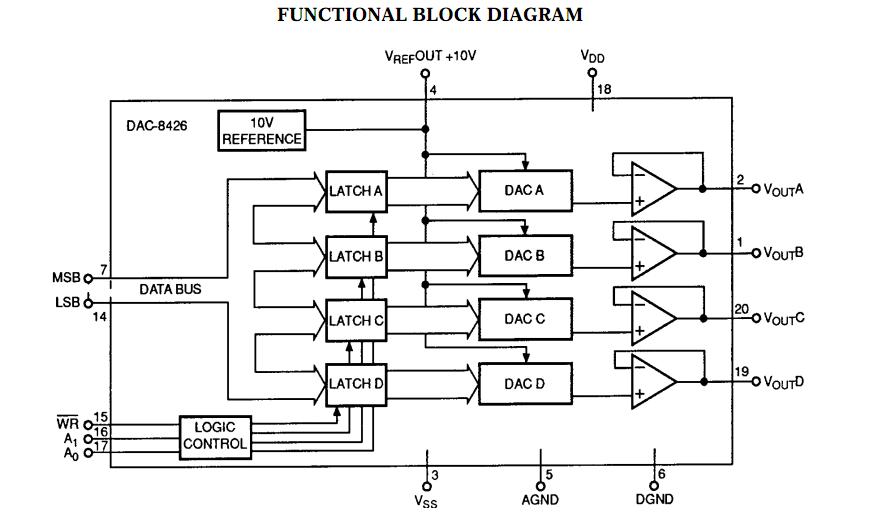

The DAC8426FSZ-REEL is a complete quad voltage output D/A converter with internal reference. This product fits directly into any existing 7226 socket where the user currently has a 10 V external reference. The external reference is no longer necessary. The internal reference of the DAC8426 is laser-trimmed to ±0.4%. The applicatiosn of the DAC8426FSZ-REEL are (1)Process Controls; (2)Multichannel Microprocessor Controlled: System Calibration; Op Amp Offset and Gain Adjust; Level and Threshold Setting.

Parametrics

DAC8426FSZ-REEL absolute maximum ratings: (1)VDD to AGND or DGND: –0.3 V, +17 V; (2)VSS to AGND or DGND: –7 V, VDD; (3)VDD to VSS: –0.3 V, +24 V; (4)AGND to DGND: –0.3 V, +5 V; (5)Digital Input Voltage to DGND: –0.3 V, VDD; (6)VREFOUT to AGND1: –0.3 V, VDD; (7)VOUT to AGND1: VSS, VDD; (8)Operating Temperature:–55 to +125℃; (9)Maximum Junction Temperature: +150℃; (10)Storage Temperature: –65 to +150℃; (11)Lead Temperature (Soldering, 60 sec): +300℃.

Features

DAC8426FSZ-REEL features: (1)No Adjustments Required, Total Error 61 LSB Max Over Temperature; (2)Four Voltage-Output DACs on a Single Chip; (3)Internal 10 V Bandgap Reference; (4)Operates from Single 115 V Supply; (5)Fast 50 ns Data Load Time, All Temperatures; (6)Pin-for-Pin Replacement for PM-7226 and AD7226, Eliminates External Reference.
