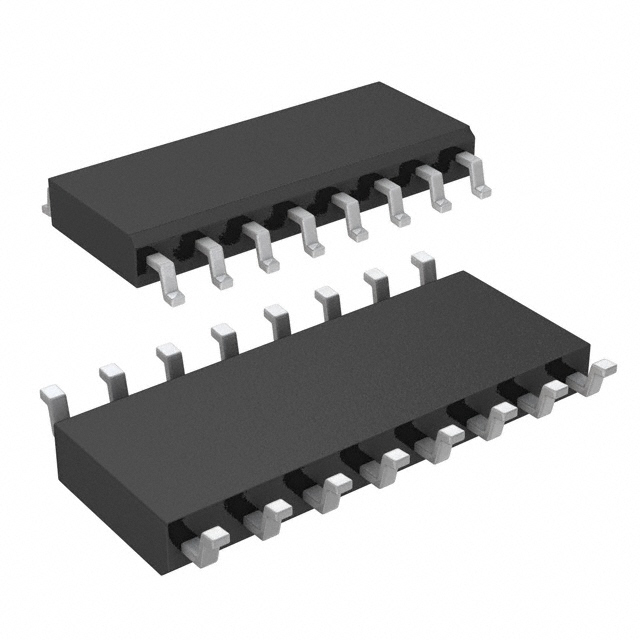

DAC7715UB

serial input, 12-bit, voltage output, Digital-to-Analog Converter, 16SOIC, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.50~23.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $13.50~23.40

PartNumber:: DAC7715UB

Brand:: Texas Instruments - TI | Pack: SO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DAC7715UB
US $13.50 - 23.40
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

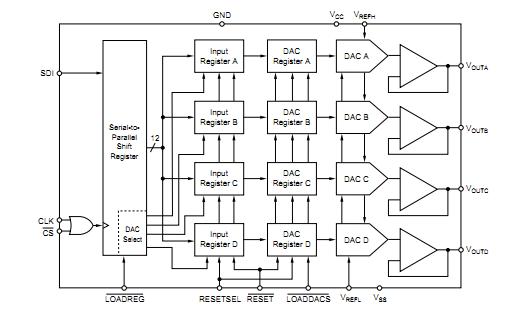

The DAC7715UB is a quad, serial input, 12-bit, voltage output Digital-to-Analog Converter (DAC) with guaranteed 12-bit monotonic performance over the–40℃ to +85℃ temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zero-scale (000H), selectable via the RESETSEL pin. The individual DAC inputs are double buffered to allow for simultaneous update of all DAC outputs. The DAC7715UB can be powered from a single +15V supply or from dual +15V and –15V supplies. The applications of the DAC7715UB include process control, ate pin electronics, closed-loop servo-control, motor control, data acquisition systems and dac-per-pin programmers.

Parametrics

DAC7715UB absolute maximum ratings: (1)VCC to VSS: –0.3V to +32V; (2)VCC to GND: –0.3V to +16V; (3)VSS to GND: +0.3V to –16V; (4)VREFH to GND: –9V to +11V; (5)VREFL to GND (VSS = –15V): –11V to +9V; (6)VREFL to GND (VSS = 0V): –0.3V to +9V; (7)VREFH to VREFL: –1V to +22V; (8)Digital Input Voltage to GND: –0.3V to 5.8V; (9)Digital Output Voltage to GND: –0.3V to 5.8V; (10)Maximum Junction Temperature: +150℃; (11)Operating Temperature Range: –40 to +85℃; (12)Storage Temperature Range: –65 to +150℃; (13)Lead Temperature (soldering, 10s): +300℃.

Features

DAC7715UB features: (1)low power: 250mW (max); (2)unipolar or bipolar operation; (3)settling time: 10μs to 0.012%; (4)12-bit linearity and monotonicity: –40 to +85℃; (5)double-buffered data inputs; (6)small SO-16 package.
