Product Summary

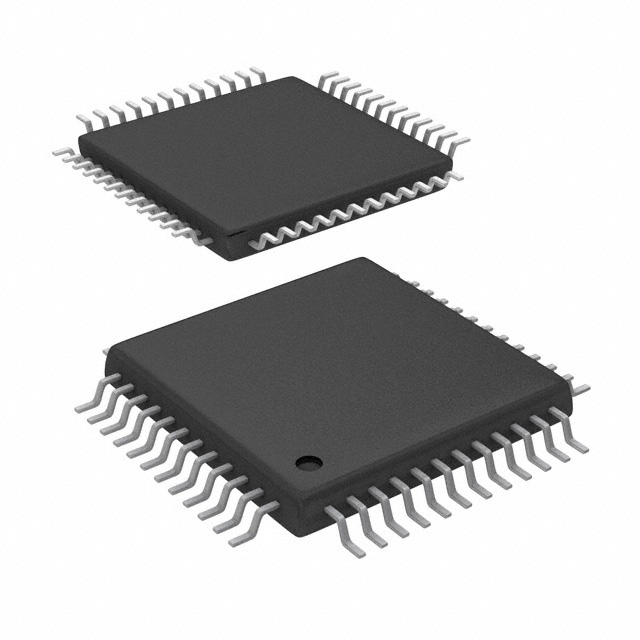

The DAC5662IPFB is a monolithic, dual-channel 12-bit high-speed digital-to-analog converter (DAC) with on-chip voltage reference. Operating with update rates of up to 275 MSPS, the DAC5662IPFB offers exceptional dynamic performance and tight-gain and offset matching, characteristics that make it suitable in either I/Q baseband or direct IF communication applications. The applications of the DAC5662IPFB are (1)Cellular Base Transceiver Station Transmit Channel; (2)Medical/Test Instrumentation; (3)Arbitrary Waveform Generators (ARB); (4)Direct Digital Synthesis (DDS); (5)Cable Modem Termination System (CMTS).
Parametrics
DAC5662IPFB absolute maximum ratings: (1)Peak input current (any input): 20 mA; (2)Peak total input current (all inputs): -30 mA; (3)Operating free-air temperature range: -40 to 85℃; (4)Storage temperature range: -65 to 150℃.
Features
DAC5662IPFB features: (1)12-Bit Dual Transmit DAC; (2)275 MSPS Update Rate; (3)Single Supply: 3 V - 3.6 V; (4)High SFDR: 85 dBc at 5 MHz; (5)High IMD3: 78 dBc at 15.1 and 16.1 MHz; (6)WCDMA ACLR: 70 dB at 30.72 MHz; (7)Independent or Single Resistor Gain Control; (8)Dual or Interleaved Data; (9)On-Chip 1.2-V Reference; (10)Low Power: 330 mW; (11)Power-Down Mode: 15 mW.

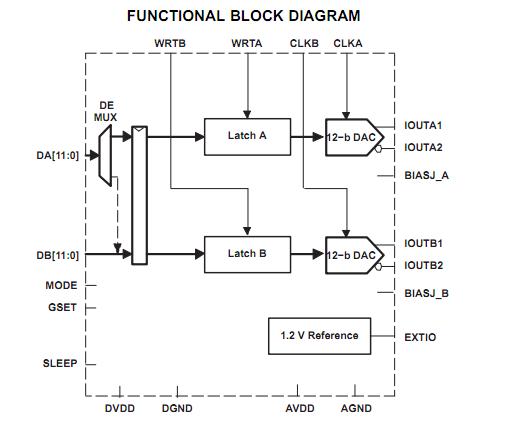

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

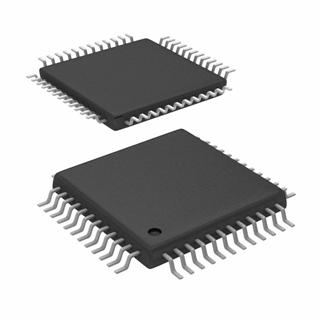

 DAC5662IPFB |
Texas Instruments |
DAC (D/A Converters) 12 bit 200 MSPS Dual DAC |
Data Sheet |
|
|
||||||||||||
|
DAC5662IPFBG4 |
Texas Instruments |
DAC (D/A Converters) 12 bit 200 MSPS Dual DAC |
Data Sheet |
|
|
||||||||||||
|
DAC5662IPFBRG4 |
Texas Instruments |
DAC (D/A Converters) 12 bit 200 MSPS Dual DAC |
Data Sheet |
|
|
||||||||||||
|
DAC5662IPFBR |
Texas Instruments |
DAC (D/A Converters) 12 bit 200 MSPS Dual DAC |
Data Sheet |
|
|
||||||||||||
