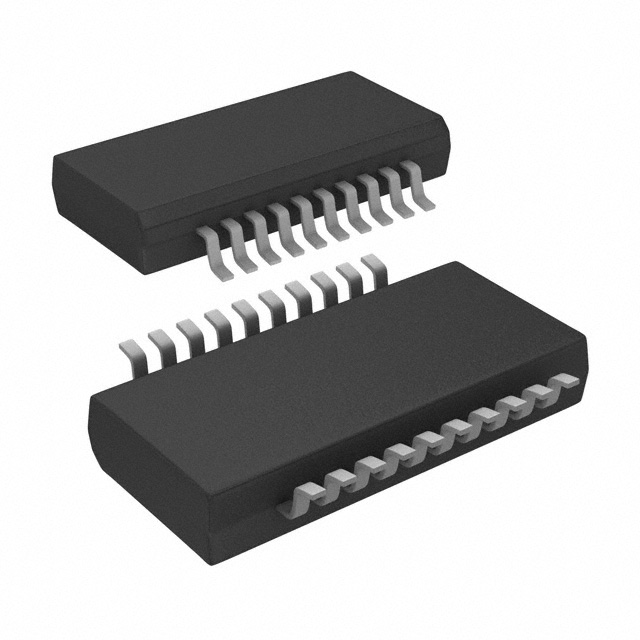

Product Summary
The CY74FCT245TQCT is an 8-bit transceiver with 3-state outputs. The device contains eight noninverting bidirectional buffers with 3-state outputs and are intended for bus-oriented applications. The CY74FCT245TQCT is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Parametrics
CY74FCT245TQCT absolute maximum ratings: (1)Supply voltage range to ground potentia: –0.5 V to 7 V; (2)DC input voltage range: –0.5 V to 7 V; (3)DC output voltage range: –0.5 V to 7 V; (4)DC output current (maximum sink current/pin): 120 mA; (5)Package thermal impedance, θJA: 69℃/W; (6)Ambient temperature range with power applied, TA: –65 to 135℃; (7)Storage temperature range, Tstg: –65 to 150℃.
Features
CY74FCT245TQCT features: (1)Function, Pinout, and Drive Compatible With FCT and F Logic; (2)Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions; (3)Edge-Rate Control Circuitry for Significantly Improved Noise Characteristics; (4)Ioff Supports Partial-Power-Down Mode Operation; (5)ESD Protection Exceeds JESD 22; (6)Matched Rise and Fall Times; (7)Fully Compatible With TTL Input and Output Logic Levels; (8)3-State Outputs.

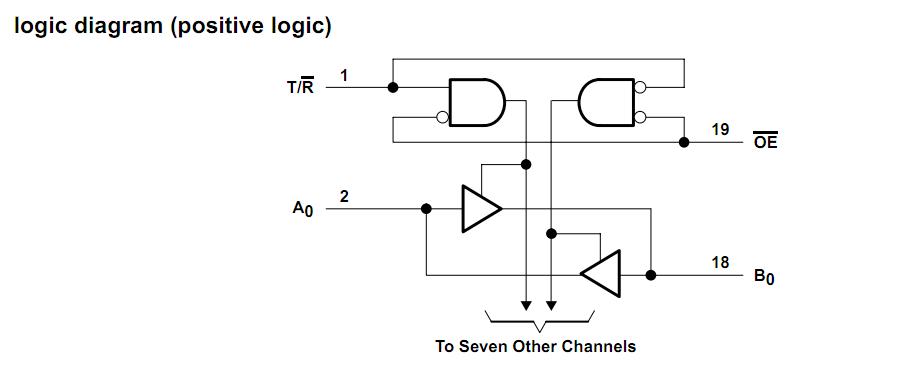

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CY74FCT245TQCT |
Texas Instruments |
Bus Transceivers Tri-St. 8-Bit |
Data Sheet |
|
|
|||||||||||||
CY74FCT245TQCTE4 |
Texas Instruments |
Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs |
Data Sheet |
|
|
|||||||||||||
CY74FCT245TQCTG4 |
Texas Instruments |
Bus Transceivers Tri-St. 8-Bit |
Data Sheet |
|
|
