Product Summary

The CC2430ZF128RTCR is a true System-on-Chip (SoC) solution specifically tailored for IEEE 802.15.4 and ZigBee applications. It enables ZigBee nodes to be built with very low total bill-of-material costs. The CC2430ZF128RTCR combines the excellent performance of the leading CC2420 RF transceiver with an industry-standard enhanced 8051 MCU, 32/64/128 KB flash memory, 8 KB RAM and many other powerful features. The CC2430ZF128RTCR is highly suited for systems where ultra low power consumption is required. This is ensured by various operating modes. Short transition times between operating modes further ensure low power consumption. The applications of CC2430ZF128RTCR are: (1)2.4 GHz IEEE 802.15.4 systems; (2)ZigBee systems; (3)Home/building automation; (4)Industrial Control and Monitoring; (5)Low power wireless sensor networks; (6)PC peripherals; (7)Set-top boxes and remote controls; (8)Consumer Electronics.

Parametrics

CC2430ZF128RTCR absolute maximum ratings: (1)Supply voltage:–0.3V to 3.9V ; (2)Voltage on any digital pin:–0.3V to VDD+0.3V, max 3.9V ; (3)Voltage on the 1.8V pins (pin no. 22, 25-40 and 42):–0.3V to 2.0V ; (4)Input RF level:10dBm; (5)Storage temperature range:–50℃ to 150℃; (6)Reflow soldering temperature:260℃.

Features

CC2430ZF128RTCR features: (1)2.4 GHz IEEE 802.15.4 compliant RF transceiver (industry leading CC2420 radio core) ; (2)Excellent receiver sensitivity and robustness to interferers ; (3)Very few external components ; (4)Only a single crystal needed for mesh network systems ; (5)RoHS compliant 7x7mm QLP48 package ; (6)Low current consumption (RX: 27 mA, TX: 27 mA, microcontroller running at 32 MHz) ; (7)Only 0.5 μA current consumption in powerdown mode, where external interrupts or the RTC can wake up the system ; (8)0.3 μA current consumption in stand-by mode, where external interrupts can wake up the system ; (9)Very fast transition times from low-power modes to active mode enables ultra low average power consumption in low dutycycle systems ; (10)Wide supply voltage range (2.0V to 3.6V) ; (11)High performance and low power 8051 microcontroller core ; (12)32, 64 or 128 KB in-system programmable flash ; (13)8 KB RAM, 4 KB with data retention in all power modes ; (14)Powerful DMA functionality ; (15)Watchdog timer ; (16)One IEEE 802.15.4 MAC timer, one general 16-bit timer and two 8-bit timers ; (17)Hardware debug support; (18)CSMA/CA hardware support. ; (19)Digital RSSI / LQI support ; (20)Battery monitor and temperature sensor ; (21)12-bit ADC with up to eight inputs and configurable resolution ; (22)AES security coprocessor ; (23)Two powerful USARTs with support for several serial protocols ; (24)21 general I/O pins, two with 20mA sink/source capability.

Diagrams

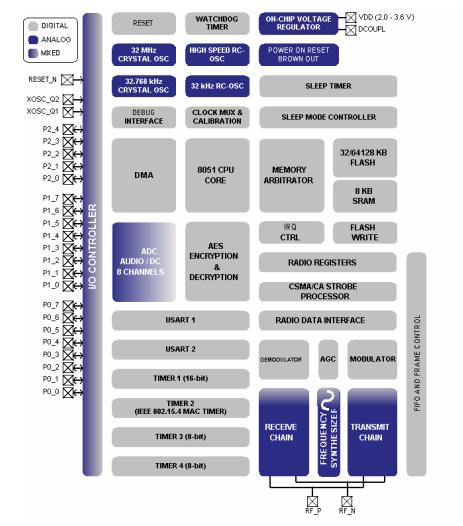

CC2430ZF128RTCR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

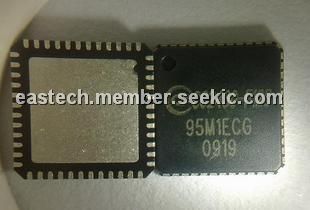

CC2430ZF128RTCR
CC2430ZF128RTCR

Texas Instruments

Zigbee Sys-on-Chip Solution Transient Response

Data Sheet

0-1: $5.60
1-25: $4.72
25-100: $4.34
100-250: $3.95
CC2430ZF128RTCRG3
CC2430ZF128RTCRG3

Texas Instruments

Zigbee SoC 2.4 GHz IEEE 802.15.4/ZigBeeTM

Data Sheet

0-1881: $3.39
1881-2000: $3.25
2000-2500: $3.25
