Product Summary

The ATMEGA1280-16AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA1280-16AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA1280-16AU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0mA; (7)DC Current VCC and GND Pins: 200.0mA.

Features

ATMEGA1280-16AU features: (1)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (2)Four 16-bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode; (3)Real Time Counter with Separate Oscillator; (4)Four 8-bit PWM Channels; (5)Six/Twelve PWM Channels with Programmable Resolution from 2 to 16 Bits(ATmega1281/2561, ATmega640/1280/2560); (6)Output Compare Modulator; (7)8/16-channel, 10-bit ADC (ATmega1281/2561, ATmega640/1280/2560); (8)Two/Four Programmable Serial USART; (9)Master/Slave SPI Serial Interface; (10)Byte Oriented 2-wire Serial Interface; (11)Programmable Watchdog Timer with Separate On-chip Oscillator; (12)On-chip Analog Comparator; (13)Interrupt and Wake-up on Pin Change.

Diagrams

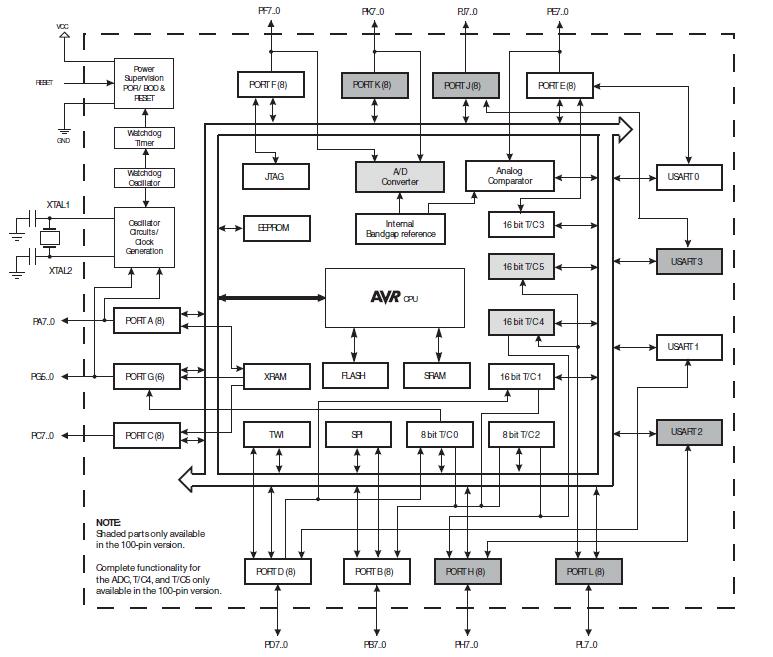

ATMEGA1280-16AU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

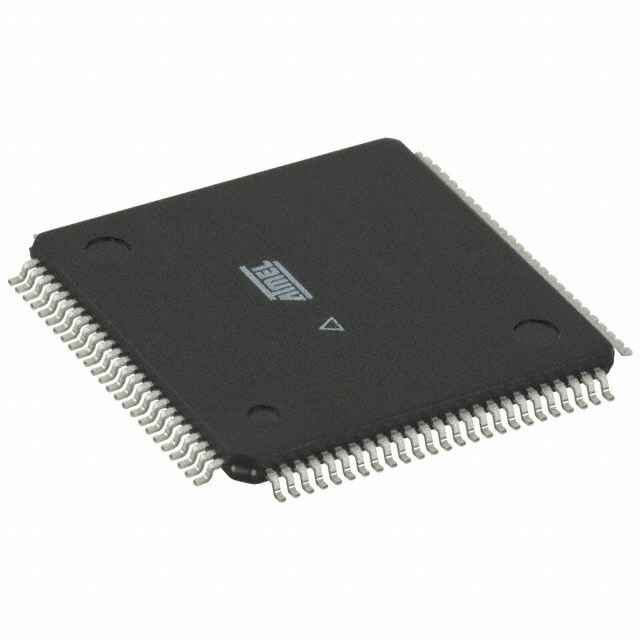

ATMEGA1280-16AU
ATMEGA1280-16AU

Atmel

8-bit Microcontrollers (MCU) 128kB Flash 4kB EEPROM 86 I/O Pins

Data Sheet

0-1: $6.85
1-10: $6.53
10-25: $6.07
25-100: $4.95

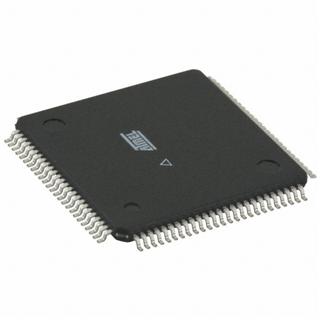

ATMEGA1280-16AUR
ATMEGA1280-16AUR

Atmel

8-bit Microcontrollers (MCU) AVR 128K FLASH 8K SRAM,4KB EEPROM

Data Sheet

0-1251: $5.47
