Product Summary

The AS183-92LF is a SPDT switch in a very small SC-70 6-lead plastic package. The AS183-92LF features low insertion loss and positive voltage operation with very low DC power consumption. This switch is suitable for handset applications.

Parametrics

AS183-92LF absolute maximum ratings: (1)RF input power: 6 W > 500 MHz 0/7 V control; (2)Control voltage: -0.2 V, +8 V; (3)Operating temperature: -40 to +85℃; (4)Storage temperature: -65 to +150℃.

Features

AS183-92LF features: (1)P1 dB 30 dBm typical @ 3 V; (2)IP3 43 dBm typical @ 3 V; (3)Low insertion loss (0.3 dB @ 0.9 GHz); (4)Low DC power consumption; (5)Miniature SC-70 6-lead plastic package; (6)Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260℃ per JEDEC J-STD-020.

Diagrams

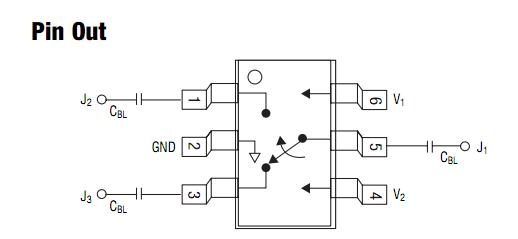

AS183-92LF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

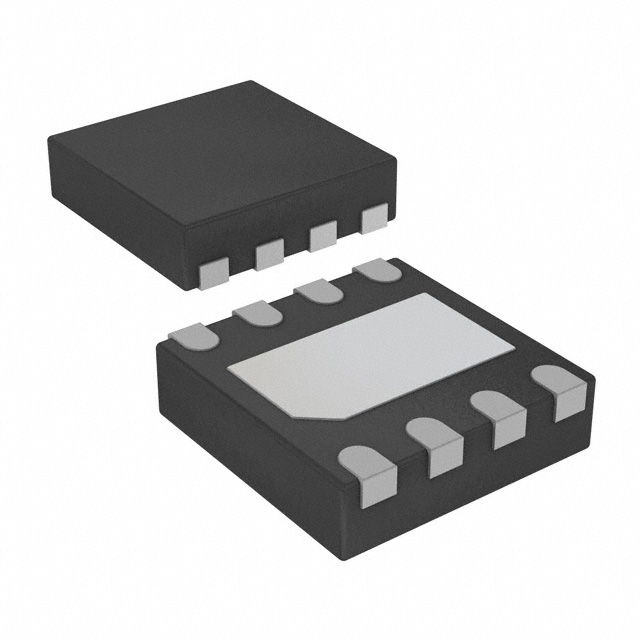

AS183-92LF
AS183-92LF
Skyworks Solutions, Inc.
RF Switch ICs .3-2500MHz IL .3dB IP3 +43dBm
Data Sheet
0-1: $0.62
1-50: $0.56
50-100: $0.47
100-500: $0.42
