Product Summary

The AD608ARZ-REEL is a low Power Mixer/Limiter. It provides both a high speed RSSI (Received Signal Strength Indicator) output with 80 dB dynamic range and a hard-limited output.

Parametrics

AD608ARZ-REEL absolute maximum ratings: (1)Supply Voltage VPS1, VPS2 :+6 V; (2)Internal Power Dissipation:600 mW; (3)Temperature Range:–40℃ to +85℃; (4)Storage Temperature Range:–65℃ to +150℃; (5)Lead Temperature (Soldering 60 sec):+300℃.

Features

AD608ARZ-REEL features: (1)–15 dBm 1 dB Compression Point; (2)–5 dBm IP3; (3)24 dB Conversion Gain; (4)>500 MHz Input Bandwidth; (5)80 dB RSSI Range; (6)638 Phase Stability over 80 dB Range; (7)21 mW at 3 V Power Consumption; (8)CMOS-Compatible Power-Down to 300 mW typ; (9)200 ns Enable/Disable Time.

Diagrams

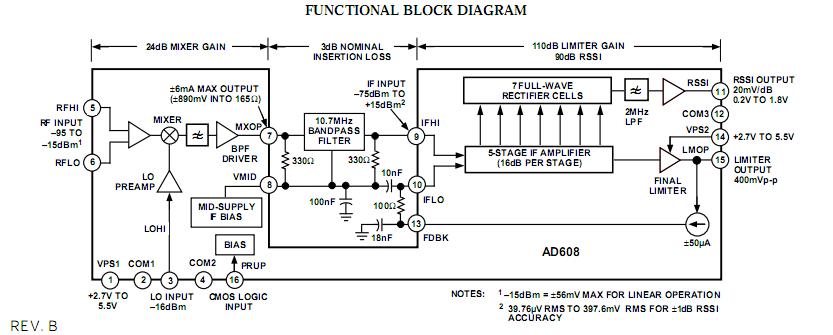

AD608ARZ-REEL block diagram
