Product Summary

The TVP7000PZP is a TRIPLE 8/10-BIT, 150/110 MSPS, video and graphics digitizer. The TVP7000PZP is a complete solution for digitizing video and graphic signals in RGB or YPbPr color spaces. The device supports pixel rates up to 150 MHz. Therefore, it can be used for PC graphics digitizing up to the VESA standard of SXGA (1280×1024) solution at 75 Hz screen refresh rate, and in video environments for the digitizing of digital TV formats, including HDTV up to 1080p. The applications of the The TVP7000PZP include LCD TV/Monitors/Projectors, DLP TV/Projectors, PDP TV/Monitors, PCTV Set-Top Boxes, Digital Image Processing, Video Capture/Video Editing, Scan Rate/Image Resolution Converters, Video Conferencing, Video/Graphics Digitizing Equipment.

Parametrics

TVP7000PZP absolute maximum ratings: (1)Supply voltage range, IOVDD to IOGND: -0.5 V to 4.5 V; DVDD to GND: -0.5 V to 2.3 V; PLL_A 18VDD to PLL_A18GND and A18VDD to A18GND: -0.5 V to 2.3 V; A33VDD to A33GND: -0.5 V to 4.5V; (2)Digital input voltage range, VI to GND: -0.5 V to 4.5 V; (3)Analog input voltage range, AI to A33GND: -0.2 V to 2.3 V; (4)Digital output voltage range, VO to GND: -0.5 V to 4.5V; (5)TA, Operating free-air temperature: 0℃ to 70℃; (6)Tstg, Storage temperature: -65℃ to 150℃.

Features

TVP7000PZP features: (1)-6 dB to 6 dB Analog Gain; (2)Analog Input MUXs; (3)Auto Video Clamp; (4)Three Digitizing Channels, Each With Independently Controllable Clamp, PGA, and ADC; (5)Clamping: Selectable Clamping Between Bottom Level and Mid-level; (6)Offset: 1024-Step Programmable RGB or YPbPr Offset Control; (7)PGA: 8-Bit Programmable Gain Amplifier; (8)ADC: 8/10-Bit 150/110 MSPS A/D Converter; (9)Automatic Level Control Circuit; (10)Composite Sync: Integrated Sync-on-Green Extraction From GreenLuminance Channel; (11)Support for DC and AC-Coupled Input Signals.

Diagrams

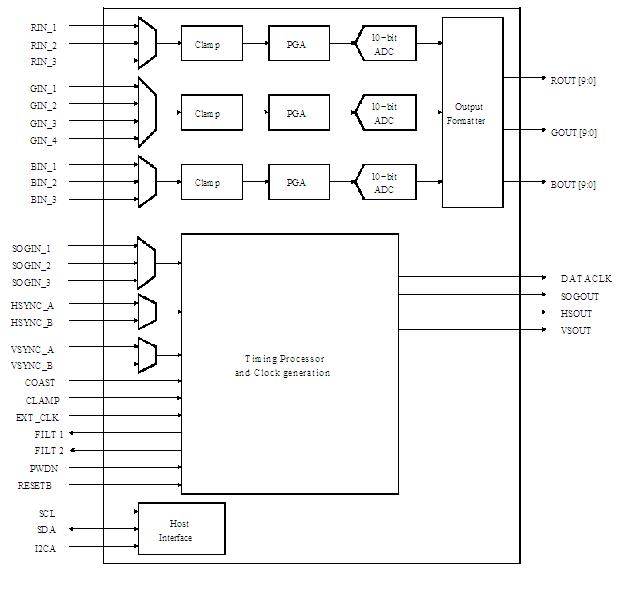

TVP7000PZP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

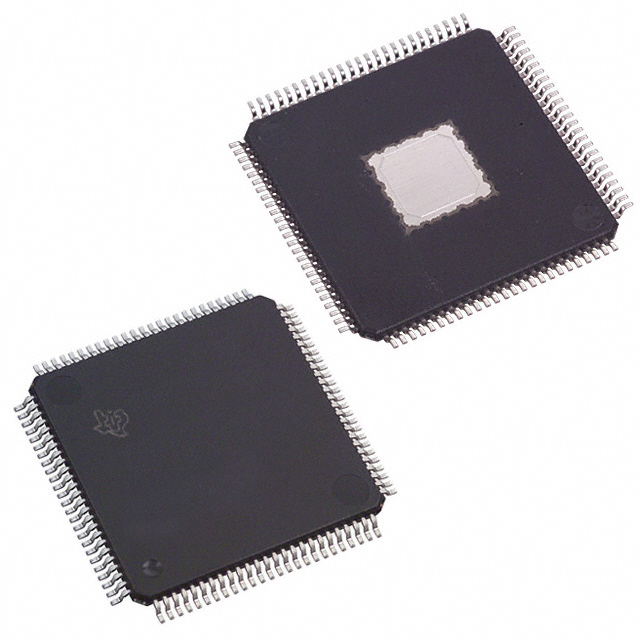

TVP7000PZP
TVP7000PZP

Texas Instruments

Video A/D Converter ICs Triple 8/10B 150/110 MSPS Video ADC

Data Sheet

0-1: $3.95
1-25: $3.34
25-100: $3.06
100-250: $2.79
TVP7000PZPR
TVP7000PZPR

Texas Instruments

Video A/D Converter ICs Tr 8/10B 150/110 MSPS Video ADC

Data Sheet

Negotiable
