Product Summary

The TPS7A3001DGNR is a negative, high-voltage (-36V), ultralow-noise (15.1mVRMS, 72dB PSRR) linear regulator capable of sourcing a maximum load of 200mA. The linear regulator includes a CMOS logic-level-compatible enable pin and capacitor-programmable soft-start function that allows for customized power-management schemes. Other features available include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions. The applications of the TPS7A3001DGNR include Supply Rails for Op Amps, DACs, ADCs, and Other High-Precision Analog Circuitry, Audio, Post DC/DC Converter Regulation and Ripple filtering, Test and Measurement, RX, TX, and PA Circuitry, Industrial Instrumention, Base Stations and Telecom Infrastrucure, –12V and –24V Industrial Buses.

Parametrics

TPS7A3001DGNR absolute maximum ratings: (1)Voltage, IN pin to GND pin: -36 to +0.3V; OUT pin to GND pin: -33 to +0.3V; OUT pin to IN pin: -0.3 to +36V; FB pin to GND pin: -2 to +0.3V; FB pin to IN pin: -0.3 to +36V; EN pin to IN pin: -0.3 to 36V; EN pin to GND pin: -36 to +36V; PG pin to GND pin: -0.3 to +36V; (2)Current, Peak output: Internally limited; (3)Temperature, Operating virtual junction, TJ, absolute maximum range: -40 to +150℃; Storage, Tstg: -65 to +150℃; (4)Electrostatic discharge rating, Human body model (HBM): 2kV; Charged device model (CDM): 500V.

Features

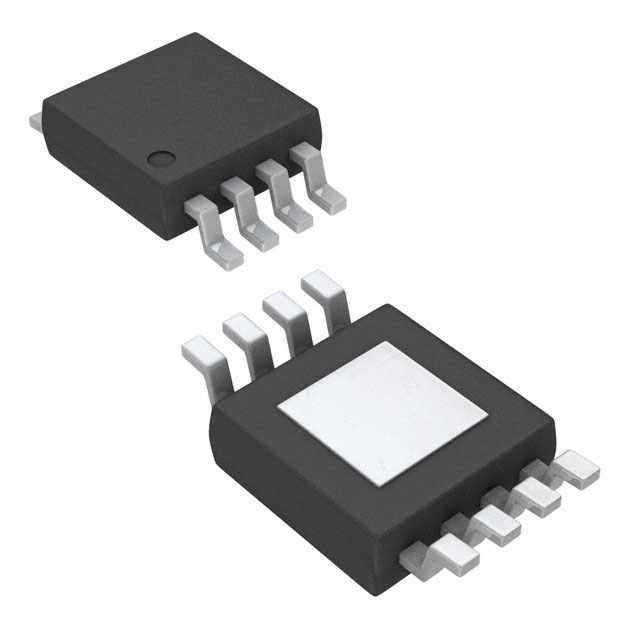

TPS7A3001DGNR features: (1)Input Voltage Range: -3V to -36V; (2)Noise: 14mVRMS (20Hz to 20kHz); 15.1mVRMS (10Hz to 100kHz); (3)Power-Supply Ripple Rejection: 72dB (120Hz); ≥ 55dB (10Hz to 700kHz); (4)Adjustable Output: –1.18V to –33V; (5)Maximum Output Current: 200mA; (6)Dropout Voltage: 216mV at 100mA; (7)Stable with Ceramic Capacitors≥ 2.2mF; (8)CMOS Logic-Level-Compatible Enable Pin; (9)Built-In, Fixed, Current-Limit and Thermal Shutdown Protection; (10)Available in High Thermal Performance MSOP-8 PowerPAD Package; (11)Operating Tempature Range: -40℃ to +125℃.

Diagrams

TPS7A3001DGNR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPS7A3001DGNR
TPS7A3001DGNR

Texas Instruments

Low Dropout (LDO) Regulators -3V to -36V,-200mA High PSRR, LDO Reg

Data Sheet

0-1: $2.25
1-25: $1.84
25-100: $1.67
100-250: $1.53
