Product Summary

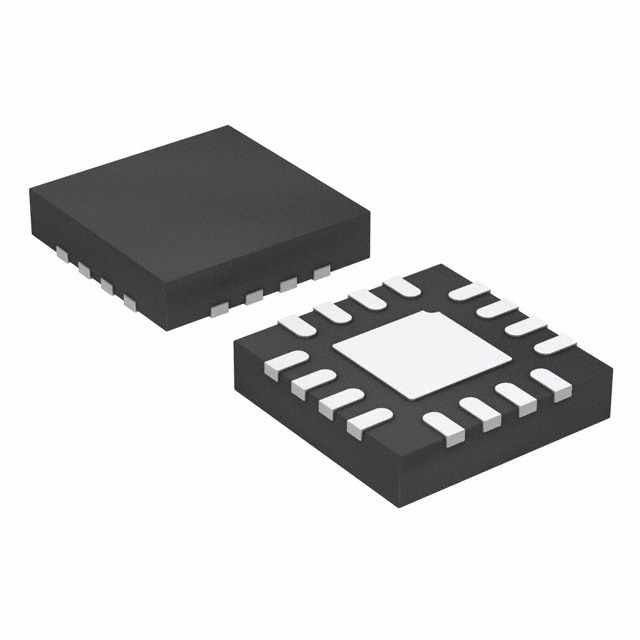

The TPS61182RTER is a WLED driver IC provides highly integrated solutions for media size LCD backlight. The device has a built-in high efficiency boost regulator with integrated 1.5A/40V power MOSFET. The six current sink regulators provide high precision current regulation and matching. In total, the device can support up to 60 WLED. In addition, the boost output automatically adjusts its voltage to the WLED forward voltage to improve efficiency. The applications of the TPS61182RTER include Notebook LCD Display Backlight, UMPC LCD Display Backlight, Backlight for Media Form Factor LCD display.
Parametrics
TPS61182RTER absolute maximum ratings: (1)Voltages on pin V BAT and Fault: -0.3 to 24 V; (2)Voltage on pin Cin: -0.3 to 3.6 V; (3)Voltage on pin SW and VO: -0.3 to 40 V; (4)Voltage on pin IFB1 to IFB6: -0.3 to 20 V; (5)Voltage on all other pins: -0.3 to 7 V; (6)Continuous power dissipation: See Dissipation Rating Table; (7)Operating junction temperature range: -40 to 150℃; (8)Storage temperature range: -65 to 150℃; (9)Lead temperature (soldering, 10 sec): 260℃.
Features
TPS61182RTER features: (1)5 V to 24 V Input Voltage; (2)Integrated 1.5 A 40 V MOSFET; (3)1.0 MHz/1.3 MHz Switching Frequency; (4)Boost Output Auto-Adaptive to WLED Voltages; (5)Small External Components; (6)Integrated Loop Compensation; (7)Six Current Sink of 25 mA; (8)Up to 10 WLED in Series; (9)Less Than 3% Current Matching and Accuracy; (10)100:1 PWM Brightness Dimming Range; (11)Minimized Output Ripple Under PWM Dimming; (12)Driver for Input/Output Isolation PFET; (13)True Shutdown; (14)Over Voltage Protection; (15)WLED Open/Short Protection; (16)Built-in Soft Start; (17)16L 3 mm × 3 mm QFN.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS61182RTER |
Texas Instruments |
LED Lighting Drivers 1.5A White LED Drvr for Notebooks |
Data Sheet |
|
|
||||||||
|
TPS61182RTERG4 |
Texas Instruments |
LED Lighting Drivers 1.5A White LED Drvr |
Data Sheet |
|
|
||||||||
