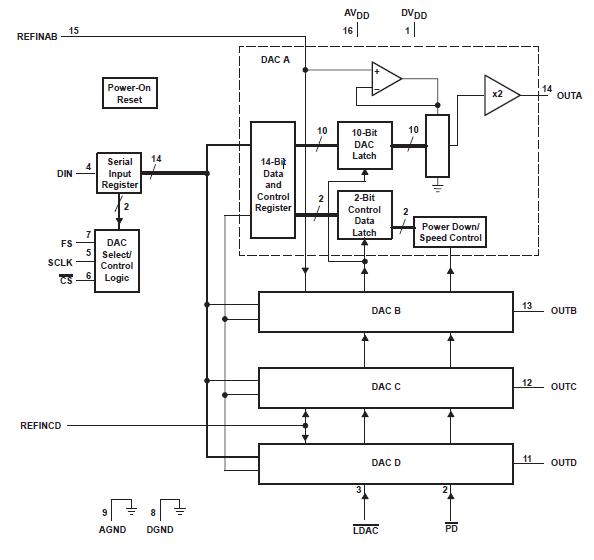

The TLV5604CPW is a quadruple 10-bit voltage output digital-to-analog converter (DAC) with a flexible 4-wire serial interface. The 4-wire serial interface allows glueless interface to TMS320, SPI, QSPI, and Microwire serial ports. The TLV5604CPW is programmed with a 16-bit serial word comprised of a DAC address, individual DAC control bits, and a 10-bit DAC value. The device has provision for two supplies: one digital supply for the serial interface (via pins DVDD and DGND), and one for the DACs, reference buffers and output buffers (via pins AVDD and AGND). The applications of the TLV5604CPW include Battery Powered Test Instruments, Digital Offset and Gain Adjustment, Industrial Process Controls, Machine and Motion Control Devices, Communications, Arbitrary Waveform Generation.
Parametrics
TLV5604CPW absolute maximum ratings: (1)Supply voltage, (DVDD, AVDD to GND): 7 V; (2)Supply voltage difference, (AVDD to DVDD): -2.8 V to 2.8 V; (3)Digital input voltage range: -0.3 V to DVDD + 0.3 V; (4)Reference input voltage range: -0.3 V to AVDD + 0.3 V; (5)Operating free-air temperature range, TA: 0℃ to 70℃; (6)Storage temperature range, Tstg: -65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV5604CPW features: (1)Four 10-Bit D/A Converters; (2)Programmable Settling Time of 3 ms or 9 ms Typ; (3)TMS320, (Q)SPI, and Microwire Compatible Serial Interface; (4)Internal Power-On Reset; (5)Low Power Consumption: 5.5 mW, Slow Mode -5V Supply; 3.3 mW, Slow Mode -3V Supply; (6)Reference Input Buffers; (7)Voltage Output Range: 2×the Reference Input Voltage; (8)Monotonic Over Temperature; (9)Dual 2.7-V to 5.5-V Supply (Separate Digital and Analog Supplies); (10)Hardware Power Down (10 nA); (11)Software Power Down (10 nA); (12)Simultaneous Update.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV5604CPW |
Texas Instruments |
DAC (D/A Converters) 10bit Quad Serial |
Data Sheet |
|
|
||||||||||||
|
TLV5604CPWG4 |
Texas Instruments |
DAC (D/A Converters) 10-Bit 3 us Quad DAC Serial Input |
Data Sheet |
|
|
||||||||||||
|
TLV5604CPWRG4 |
Texas Instruments |
DAC (D/A Converters) 10-Bit 3 us Quad DAC Serial Input |
Data Sheet |
|
|
||||||||||||
|
TLV5604CPWR |
Texas Instruments |
DAC (D/A Converters) 10-Bit 3 us Quad DAC Serial Input |
Data Sheet |
|
|
||||||||||||
