TLV320AIC1110GQER

Product Summary

The TLV320AIC1110GQER is a PCM CODEC. The TLV320AIC1110GQER provides extended gain and attenuation flexibility for transmit, receive, and sidetone paths. A differential earphone output is capable of driving speaker loads as low as 8 Ω for use in speaker phone applications. The single tone function on the TLV320AIC1110GQER generates a single tone output of up to 8 kHz. The resolution of the DTMF tone is also selectable to 7.8125 Hz, 15.625 Hz, or 31.25 Hz through the interface control. The analog switch provides more control capabilities for voice-band audio processor (PCM codec). The applications of the TLV320AIC1110GQER include Digital Handset, Digital Headset, Cordless Phones, Digital PABX, Digital Voice Recording.

Parametrics

TLV320AIC1110GQER absolute maximum ratings: (1)Supply voltage range, AVDD, DVDD, PLLVDD, EARVDD: -0.5 V to 3.6 V; (2)Output voltage range, VO: -0.5 V to 3.6 V; (3)Input voltage range, VI: -0.5 V to 3.6 V; (4)Continuous total power dissipation: See Dissipation Rating Table; (5)Operating free air temperature range (industrial temperature): -40℃ to 85℃; (6)Storage temperature range, testing: -65℃ to 150℃; (7)Lead temperature 1,6 mm from case for 10 seconds: 260℃.

Features

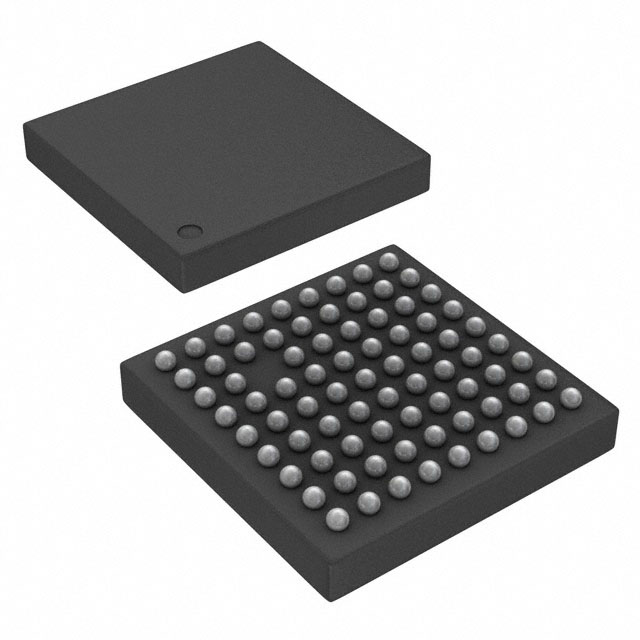

TLV320AIC1110GQER features: (1)2.7-V to 3.3-V Operation; (2)Designed for Analog and Digital Wireless Handsets and Telecommunications Applications; (3)Two Differential Microphone Inputs; (4)Differential Earphone Outputs and One Single-Ended Earphone Output; (5)Earphone and Microphone Mute; (6)Programmable Transmit, Receive, and Sidetone Paths With Extended Gain and Attenuation Ranges; (7)Programmable for 15-Bit Linear Data or 8-Bit Companded (μ-law and A-law) Mode; (8)Supports PCM Clock Rates of 128 kHz and 2.048 MHz; (9)Pulse Density Modulated (PDM) Buzzer Output; (10)On-Chip I2C Bus, Which Provides Simple, Standard, Two-Wire Serial Interface With Digital ICs; (11)Dual-Tone Multifrequency (DTMF) and Single-Tone Generator Capable of up to 8-kHz Tone With Three Selectable Resolutions of; (12)7.8125 Hz, 15.625 Hz, and 31.25 Hz; (13)2-Channel Auxiliary Multiplexer (MUX) (Analog Switch); (14)Capable of Driving 32 Ω Down to a 8-Ω Speaker; (15)Programmable Power Down Modes; (16)Pin Compatible to the TLV320AIC1103 and TLV320AIC1109 Devices for TQFP Only; (17)Available in a 32-Pin Thin Quad Flatpack (TQFP) Package and MicroStar Junior BGA.

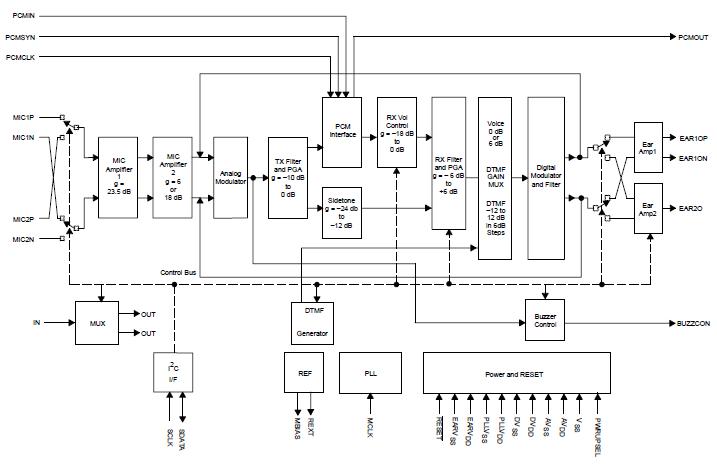

Diagrams
