Product Summary
The TLV2543IDB is a 12-bit, switched-capacitor, successive-approximation, analog-to-digital converter (ADC). The TLV2543IDB has three control inputs and is designed for communication with the serial port of a host processor or peripheral through a serial 3-state output. The TLV2543IDB allows high-speed data transfers from the host. In addition to the high-speed converter and versatile control capability, the TLV2543IDB has an on-chip 14-channel multiplexer that can select any one of 11 inputs or any one of three internal self-test voltages.
Parametrics
TLV2543IDB absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 6.5 V; (2)Input voltage range, VI (any input): -0.3 V to VCC + 0.3 V; (3)Output voltage range, VO: -0.3 V to VCC + 0.3 V; (4)Positive reference voltage, Vref+: VCC + 0.1 V; (5)Negative reference voltage, Vref–: -0.1 V; (6)Peak input current, II (any input): ±20 mA; (7)Peak total input current (all inputs): ±30 mA; (8)Operating free-air temperature range, TA: -40 to 85℃; (9)Storage temperature range, Tstg: -65 to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: 260℃.
Features
TLV2543IDB features: (1)12-Bit-Resolution A/D Converter; (2)10-μs Conversion Time Over Operating Temperature Range; (3)11 Analog Input Channels; (4)3 Built-In Self-Test Modes; (5)Inherent Sample and Hold Function; (6)Linearity Error: ±1 LSB Max; (7)On-Chip System Clock; (8)End-of-Conversion (EOC) Output; (9)Unipolar or Bipolar Output Operation (Signed Binary With Respect to Half of the Applied Referenced Voltage); (10)Programmable MSB or LSB First; (11)Programmable Power Down; (12)Programmable Output Data Length; (13)CMOS Technology.

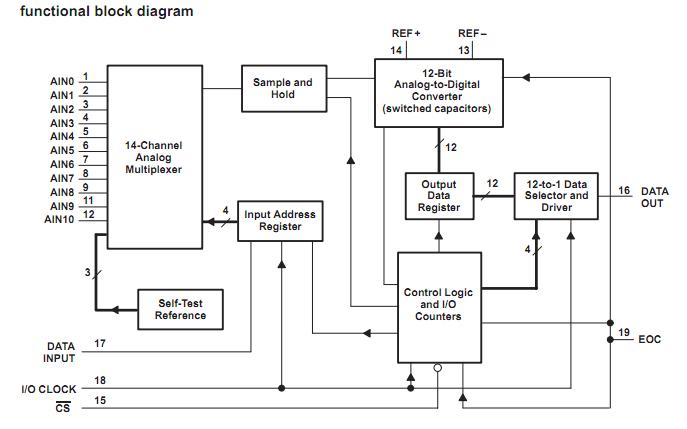

Diagrams
