Product Summary

The THS6002IDWP is a dual differential line driver and receiver. The THS6002IDWP contains two high-current, high-speed drivers and two high-speed receivers. The THS6002IDWP can be configured differentially for driving and receiving signals over low-impedance lines. The THS6002IDWP is ideally suited for asymmetrical digital subscriber line (ADSL) applications where it supports the high-peak voltage and current requirements of that application. Both the drivers and the receivers are current feedback amplifiers designed for the high slew rates necessary to support low total harmonic distortion (THD) in ADSL applications. Separate power supply connections for each driver are provided to minimize crosstalk.

Parametrics

THS6002IDWP absolute maximum ratings: (1)Supply voltage, VCC+ to VCC–: 33 V; (2)Input voltage, VI (driver and receiver): ±VCC; (3)Output current, IO (driver): 800mA; (4)Output current, IO (receiver): 150mA; (5)Differential input voltage, VID (driver and receiver): 6 V; (6)Continuous total power dissipation at (or below) TA = 25℃: 5.8W; (7)Operating free air temperature, TA: –40℃ to 85; (8)Storage temperature, Tstg:–65 to 125℃; (9)Lead temperature, 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.

Features

THS6002IDWP features: (1)ADSL Differential Line Driver and Receiver; (2)330 MHz Bandwidth (?dB); (3)900 V/ms Slew Rate at G = 2; (4)-76 dB 3rd Order Harmonic Distortion at f = 1 MHz, 150-W Load, and 20 VO(PP); (5)Wide Supply Range ±4.5 V to ±16 V; (6)Available in the PowerPADE Package; (7)Improved Replacement for AD816 or EL1501; (8)Evaluation Module Available.

Diagrams

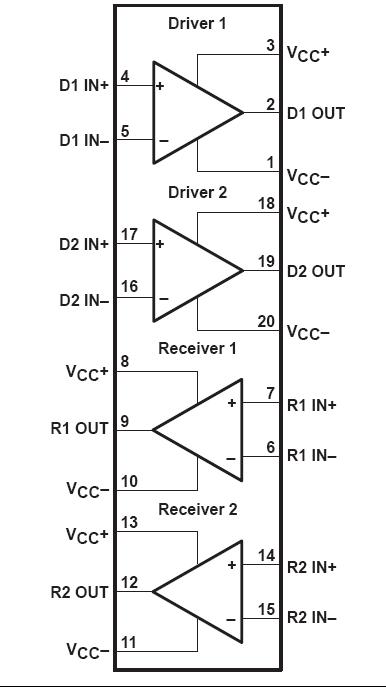

THS6002IDWP block diagram

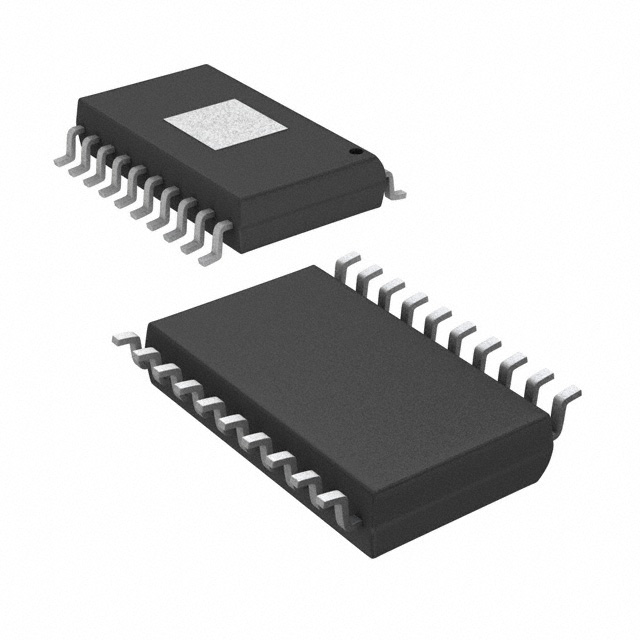

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
THS6002IDWP
THS6002IDWP

Texas Instruments

Buffers & Line Drivers Dual Diff/Receiver Line Driver

Data Sheet

0-1: $9.17
1-25: $8.06
25-100: $6.58
100-250: $6.45
THS6002IDWPG4
THS6002IDWPG4

Texas Instruments

Buffers & Line Drivers Dual Diff/Receiver Line Driver

Data Sheet

0-1: $9.48
1-25: $8.06
25-100: $6.58
100-250: $6.45
THS6002IDWPRG4
THS6002IDWPRG4

Texas Instruments

Buffers & Line Drivers Dual Diff/Receiver Line Driver

Data Sheet

0-1385: $5.15
1385-2000: $4.99
THS6002IDWPR
THS6002IDWPR

Texas Instruments

Buffers & Line Drivers Dual Diff/Receiver Line Driver

Data Sheet

0-1385: $5.15
1385-2000: $4.99
