Product Summary
The THS5651AIDW is a 10-bit resolution digital-to-analog converter (DAC) specifically optimized for digital data transmission in wired and wireless communication systems. The 10-bit DAC is a member of the CommsDAC series of high-speed, low-power CMOS digital-to-analog converters. The CommsDAC family consists of pin compatible 14-, 12-, 10-, and 8-bit DACs. The THS5651AIDW offers identical interface options, small outline package and pinout. The THS5651AIDW offers superior ac and dc performance while supporting update rates up to 125 MSPS.
Parametrics
THS5651AIDW absolute maximum ratings: (1)Supply voltage range, AVDD:–0.3 V to 6.5 V; (2)DVDD:–0.3 V to 6.5 V; (3)Voltage between AGND and DGND:–0.3 V to 0.5 V; (4)Supply voltage range, AVDD to DVDD:–6.5 V to 6.5 V; (5)CLK, SLEEP, MODE:–0.3 V to DVDD + 0.3 V; (6)Digital input D9–D0 (see Note 2):–0.3 V to DVDD + 0.3 V; (7)IOUT1, IOUT2:–1 V to AVDD + 0.3 V; (8)COMP1, COMP2:–0.3 V to AVDD + 0.3 V; (9)EXTIO, BIASJ:–0.3 V to AVDD + 0.3 V; (10)EXTLO:–0.3 V to 0.3 V; (11)Peak input current (any input): 20mA; (12)Peak total input current (all inputs):–30mA; (13)Operating free-air temperature range, TA: THS5651AI:–40℃ to 85℃; (14)Storage temperature range:–65℃ to 150℃; (15)Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds : 260℃.
Features

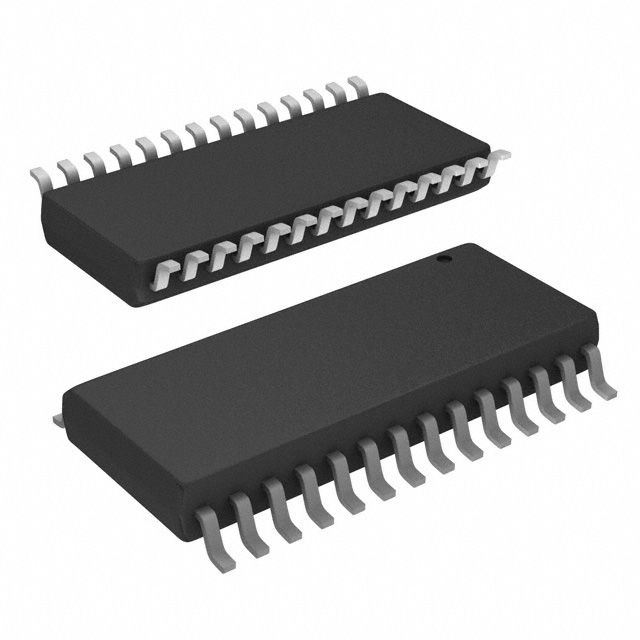

THS5651AIDW features: (1)Member of the Pin-Compatible CommsDAC Product Family; (2)125 MSPS Update Rate; (3)10-Bit Resolution; (4)Superior Spurious Free Dynamic Range Performance (SFDR) to Nyquist at 40 MHz Output: 62 dBc; (5)1 ns Setup/Hold Time; (6)Differential Scalable Current Outputs: 2 mA to 20 mA; (7)On-Chip 1.2-V Reference; (8)3 V and 5 V CMOS-Compatible Digital Interface; (9)Straight Binary or Twos Complement Input; (10)Power Dissipation: 175 mW at 5 V, Sleep Mode: 25 mW at 5 V; (11)Package: 28-Pin SOIC and TSSOP.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS5651AIDW |
Texas Instruments |
DAC (D/A Converters) 10-Bit 100MSPS Comms DAC |
Data Sheet |
|
|
||||||||||||
|
THS5651AIDWG4 |
Texas Instruments |
DAC (D/A Converters) 10-Bit 100MSPS Comms DAC |
Data Sheet |
|
|
||||||||||||
|
THS5651AIDWRG4 |
Texas Instruments |
DAC (D/A Converters) 10-Bit 100MSPS Comms DAC |
Data Sheet |
|
|
||||||||||||
|
THS5651AIDWR |
Texas Instruments |
DAC (D/A Converters) 10-Bit 100MSPS Comms DAC |
Data Sheet |
|
|
||||||||||||
