Product Summary
The TAS3103DBT is a True digital audio amplifier. One TDAA system accepts a serial PCM digital audio stream and converts it to a 3.3V PWM audio stream. The TAS3103DBT is an innovative, cost-effective, high-performance 24-bit stereo PCM-PWM modulator based on Equibit. technology. It has a wide variety of serial input options including right-justified (16, 20, or 24 bits), IIS (16, 20, or 24 bits), left-justified (16 bits), or DSP (16 bits) data formats. It is fully compatible with AES standard sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz. The TAS3103DBT also provides a de-emphasis function for 44.1-kHz and 48-kHz sampling rates. The applications of the TAS3103DBT include DVD-Audio, Home Theater, Car Audio Amplifiers and Head Units, Internet Music Appliance, Mini/Micro Component Systems.
Parametrics
TAS3103DBT absolute maximum ratings: (1)Analog supply voltage range, AVDD1, AVDD2:–0.3 V to 4.2 V; (2)Digital power supply voltage, DVDD1, DVDD2, DVDD3_L, DVDD3_R: –0.3 V to 4.2 V; (3)Digital input voltage, VI (see Note 1):–0.3 V to DVDDX + 0.3 V; (4)Operating free-air temperature, TA: 0 to 70℃; (5)Storage temperature, Tstg:–65 to 150℃; (6)ESD: 2000 V.
Features
TAS3103DBT features: (1)The features of TAS3103DBTcan be summarized as (1)TAS5012 + TAS5110 TDAA System – High Quality Digital Audio Amplification; (2)102-dB Dynamic Range (TAS5012 Device); (3)THD+N＜0.06%; (4)Power Efficiency Is 90% Into 8Ω Load; (5)16-, 20-, or 24-Bit Input Data; (6)32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Sampling Rates; (7)Economical 48-Pin TQFP Package; (8)Lower-Jitter Internal PLL; (9)3.3V Power Supply; (10)Mute; (11)Clicks and Pops Reduction (Patent Pending).

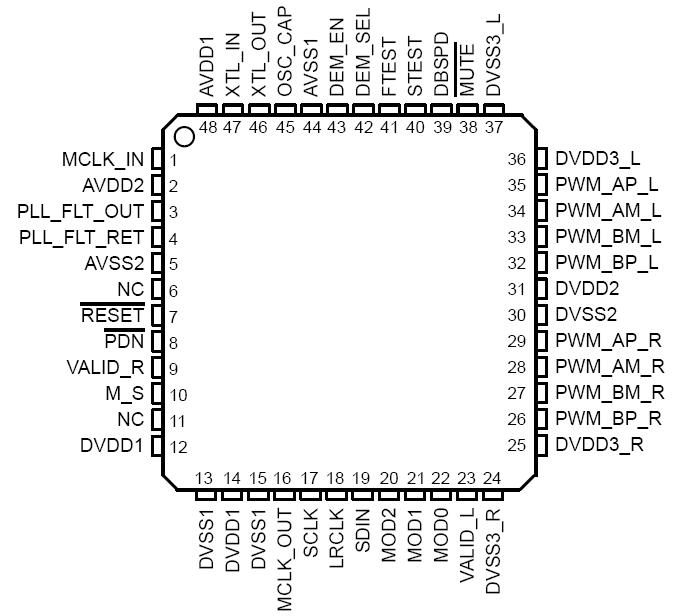

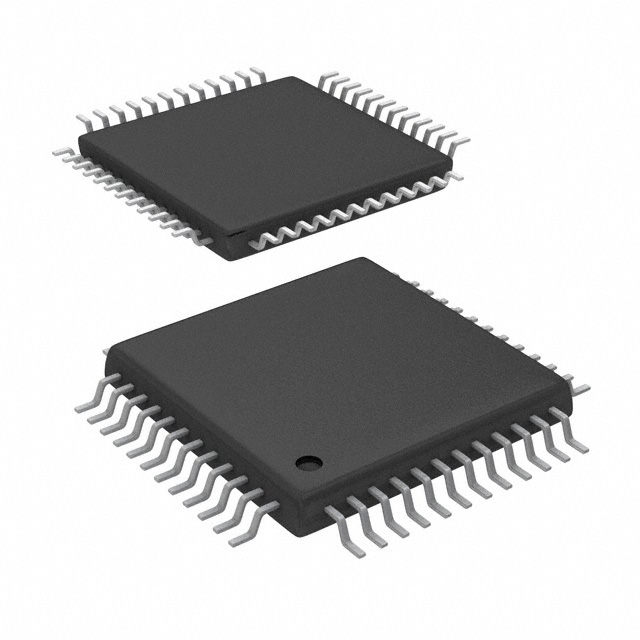

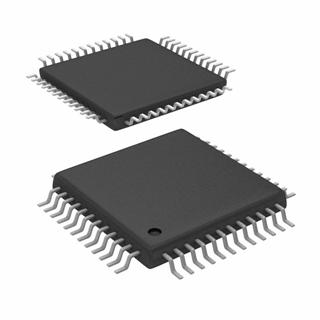

Diagrams
