Product Summary
The STM8L101F3P6 is an 8-bit ultralow power microcontroller with up to 8 Kbytes Flash, multifunction timers, comparators, USART, SPI, I2C. The STM8L101F3P6 features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations. The STM8L101F3P6 includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive In-Application debugging and ultrafast Flash programming.
Parametrics
STM8L101F3P6 absolute maximum ratings: (1)VDD- VSS External supply voltage -0.3 to 4.0V; (2)VIN Input voltage on true open drain pins (PC0 and PC1): VSS-0.3 to 5.25V; (3)Input voltage on any other pin: VSS-0.3 to 4.6V; (4)IVDD Total current into VDD power line (source): 80mA; (5)IVSS Total current out of VSS ground line (sink): 80mA.
Features
STM8L101F3P6 features: (1)Supply voltage range 1.65 V to 3.6 V; (2)Low power consumption (Halt: 0.3 μA, Active-halt: 0.8 μA, Dynamic Run: 150 μA/MHz); (3)STM8 Core with up to 16 CISC MIPS throughput; (4)Temp. range: -40 to 85℃ and 125℃; (5)Up to 8 Kbytes of Flash program including up to 2 Kbytes of data EEPROM; (6)Error correction code (ECC); (7)Clock management; (8)Reset and supply management; (9)Interrupt management; (10)Development support; (11)96-bit unique ID.

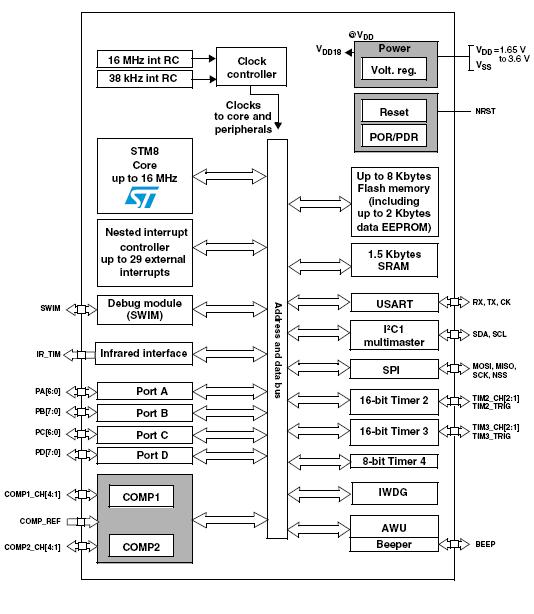

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

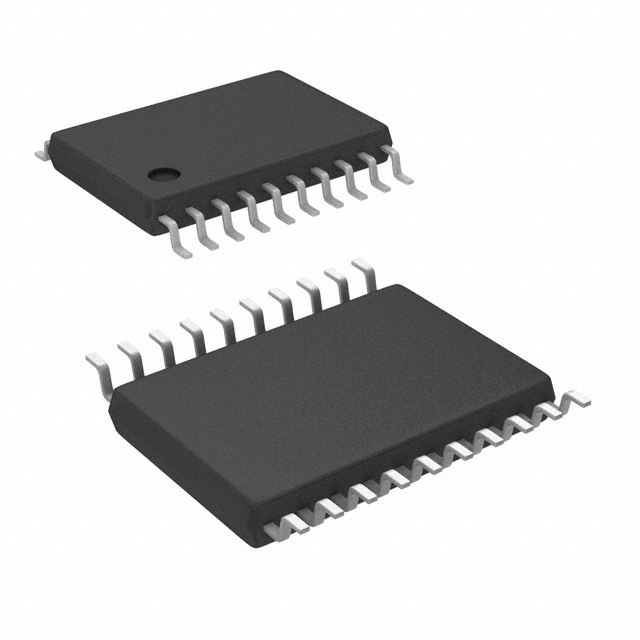

 STM8L101F3P6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) 8-Bit UL PWR MCU 8Kbytes -40 to 85 |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
STM8/128-D/RAIS |
STMicroelectronics |
Daughter Cards & OEM Boards Starter Kit for STM8 & ST7 |
Data Sheet |
|
|
||||||||||||
|
STM8/128-EV/TS |
STMicroelectronics |
Development Boards & Kits - Other Processors STM8S Eval BRD Touch Sense Solution |
Data Sheet |
|
|
||||||||||||
|
STM8/128-EVAL |
STMicroelectronics |
Development Boards & Kits - Other Processors STM8S DEMO FIRMWARE EMB FLASH STORED MCU |
Data Sheet |
|
|
||||||||||||
|
STM8/128-MCKIT |
STMicroelectronics |
Development Boards & Kits - Other Processors STM8S 128KB Motor Control Kit |
Data Sheet |
|
|
||||||||||||
|
STM8/128-SK/RAIS |
STMicroelectronics |
Development Boards & Kits - Other Processors Starter Kit for STM8 & ST7 |
Data Sheet |
|
|
||||||||||||
 |
STM802 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
