Product Summary
The STM32F217ZET6 is an ARM-based 32-bit MCU. The STM32F217ZET6 is based on the high-performance ARM Cortex M3 32-bit RISC core operating at a frequency of up to 120 MHz. The family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 128 Kbytes of system SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. The STM32F217ZET6 also features an adaptive real-time memory accelerator (ART Accelerator.) which allows to achieve a performance equivalent to 0 wait state program execution from Flash memory at a CPU frequency up to 120 MHz. This performance has been validated using the CoreMark benchmark.
Parametrics
STM32F217ZET6 absolute maximum ratings: (1)fHCLK Internal AHB clock frequency: 0 to 120MHz; (2)fPCLK1 Internal APB1 clock frequency: 0 to 30MHz; (3)fPCLK2 Internal APB2 clock frequency: 0 to 60MHz; (4)VDD Standard operating voltage 1.8 to 3.6V; (5)Analog operating voltage (ADC limited to 2 M samples): 2.4 to 3.6V; (6)VBAT Backup operating voltage: 1.65 to 3.6V; (7)Power dissipation: 444mW.
Features
STM32F217ZET6 features: (1)Up to 1 Mbyte of Flash memory; (2)Up to 128 + 4 Kbytes of SRAM; (3)Flexible static memory controller that supports Compact Flash, SRAM, PSRAM, NOR and NAND memories; (4)Clock, reset and supply management; (5)Low power; (6)3×12-bit, 0.5μs A/D converters; (7)2×12-bit D/A converters; (8)General-purpose DMA; (9)Up to 17 timers; (10)Up to 15 communication interfaces; (11)Advanced connectivity; (12)CRC calculation unit, 96-bit unique ID; (13)Analog true random number generator.

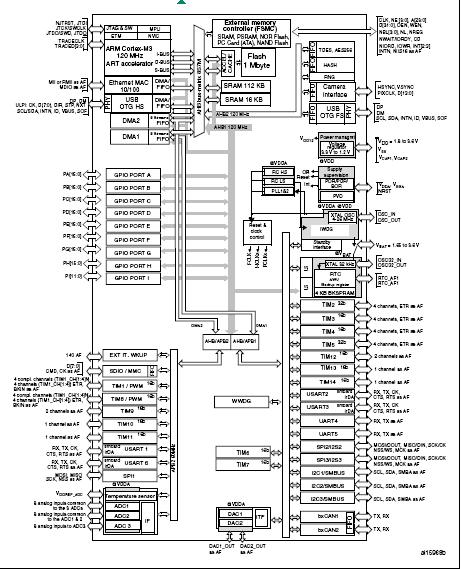

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F217ZET6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT ARM Cortex M3 Connectivity 512kB |
Data Sheet |
|
|
||||||||||||
