Product Summary
The PTN78060WAZ is a high-efficiency, step-down integrated switching regulator (ISR), that represents the third generation in the evolution of the popular (PT)78ST200, 78ST300, (PT)78HT200, and 78HT300 series of products. In new designs, the PTN78060WAZ may also be considered in place of the PT6200, PT6210, and PT6300 series of single in-line pin (SIP) products. In all cases, the device has either similar or improved electrical performance characteristics. The PTN78060WAZ has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and overtemperature protection. It is used in General-Purpose, Industrial Controls, HVAC Systems, Test and Measurement, Medical Instrumentation, AC/DC Adaptors, Vehicles, Marine, and Avionics.
Parametrics
PTN78060WAZ absolute maximum ratings: (1)TA Operating free-air temperature: –40℃ to 85℃; (2)Solder reflow temperature: 235℃; (3)Tstg Storage temperature: –40℃ to 125℃; (4)VI Input surge voltage, 10 ms maximum: 38 V; (5)V(Inhibit) Inhibit (pin 3) input voltage: –0.3 V to 5 V; (6)PO Output power: 45 W.
Features
PTN78060WAZ features: (1)3-A Output Current; (2)Wide-Input Voltage(7 V to 36 V) / (15 V to 36 V); (3)Wide-Output Voltage Adjust(2.5 V to 12.6 V) / (11.85 V to 22 V); (4)High Efficiency (Up to 96%); (5)On/Off Inhibit; (6)Under-Voltage Lockout; (7)Output Current Limit; (8)Overtemperature Shutdown; (9)Operating Temperature: -40℃ to 85℃; (10)Surface Mount Package Available.

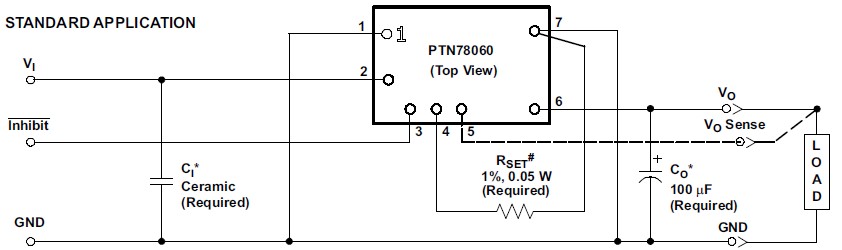

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PTN78060WAZ |
Texas Instruments |
DC/DC Converters 3-A Wide-Input Adj Swtch Reg Mod |
Data Sheet |
|
|
||||||||||||
|
PTN78060WAZT |
Texas Instruments |
DC/DC Converters 3-A Wide-Input Adj Swtch Reg Mod |
Data Sheet |
|
|
||||||||||||
