Product Summary
The OPA353NA/250 is a rail-to-rail CMOS operational amplifier. It is designed for low cost, miniature applications. The device is optimized for low voltage, single-supply operation. Rail-to-rail input/output, low noise (5nV/√Hz ̄), and high speed operation (44MHz, 22V/μs) make it ideal for driving sampling analog-to-digital converters. The OPA353NA/250 is also well suited for cell phone PA control loops and video processing (75Ω drive capability) as well as audio and general purpose applications. The applications of the OPA353NA/250 include: cell phone pa control loops, driving a/d converters, video processing, data acquisition, process control, audio processing, communications, active filters, test equipment.
Parametrics
OPA353NA/250 absolute maximum ratings: (1)Supply Voltage: 5.5V; (2)Signal Input Terminals, Voltage: (V–) – 0.3V to (V+) + 0.3V; Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature:–55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA353NA/250 features: (1)rail-to-rail input; (2)rail-to-rail output (within 10mv); (3)wide bandwidth: 44mhz; (4)high slew rate: 22v/μs; (5)low noise: 5nv/√hz; (6)low thd+noise: 0.0006%; (7)unity-gain stable; (8)microsize packages; (9)single, dual, and quad.

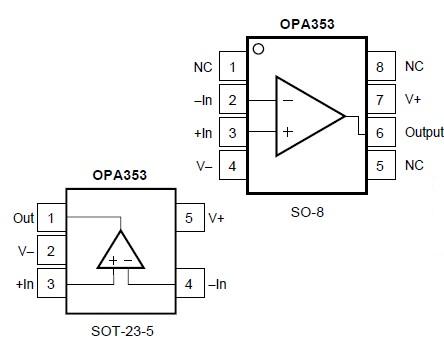

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

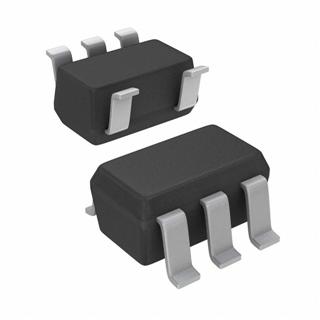

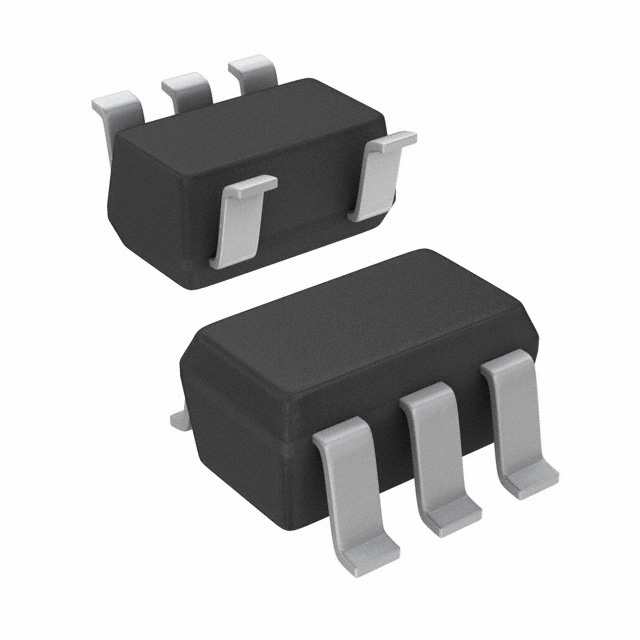

![]() OPA353NA/250 |
![]() Texas Instruments |
![]() High Speed Operational Amplifiers Hi-Spd Single-Sply Rail-to-Rail |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() OPA353NA/250G4 |
![]() Texas Instruments |
![]() High Speed Operational Amplifiers Hi-Spd Sgl-Supply Rail-to-Rail Op Amp |
![]() Data Sheet |
![]()
|
|
