Product Summary

The OPA300AID is a high-speed, voltage-feedback, CMOS operational amplifier designed for 16-bit resolution systems. The OPA300AID is unity-gain stable and feature excellent settling and harmonic distortion specifications. Low power applications benefit from low quiescent current. The OPA300AID features digital shutdown (Enable) function to provide additional power savings during idle periods. Optimized for single-supply operation, the OPA300AID offer superior output swing and excellent common-mode range. The applications of the device are (1)16-Bit ADC Input Drivers; (2)Low-Noise Preamplifiers; (3)IF/RF Amplifiers; (4)Active Filtering.

Parametrics

OPA300AID absolute maximum ratings: (1)Power Supply V+: 5.5V; (2)Signal Input Terminals, Voltage: 0.5V to (V+) + 0.5V; (3)Current: ±10mA; (4)Open Short-Circuit Current: Continuous; (5)Operating Temperature Range: -55 to +125℃; (6)Storage Temperature Range: -60 to +150℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

OPA300AID features: (1)High Bandwidth: 150MHz; (2)16-Bit Settling in 150ns; (3)Low Noise: 3nV/√Hz; (4)Low Distortion: 0.003%; (5)Low Power: 9.5mA (typ) on 5.5V; (6)Shutdown to 5μA; (7)Unity Gain Stable; (8)Excellent Output Swing:; (9)(V+) - 100mV to (V-) + 100mV; (10)Single Supply: +2.7V to +5.5V; (11)Tiny Packages: SO-8 and SOT23.

Diagrams

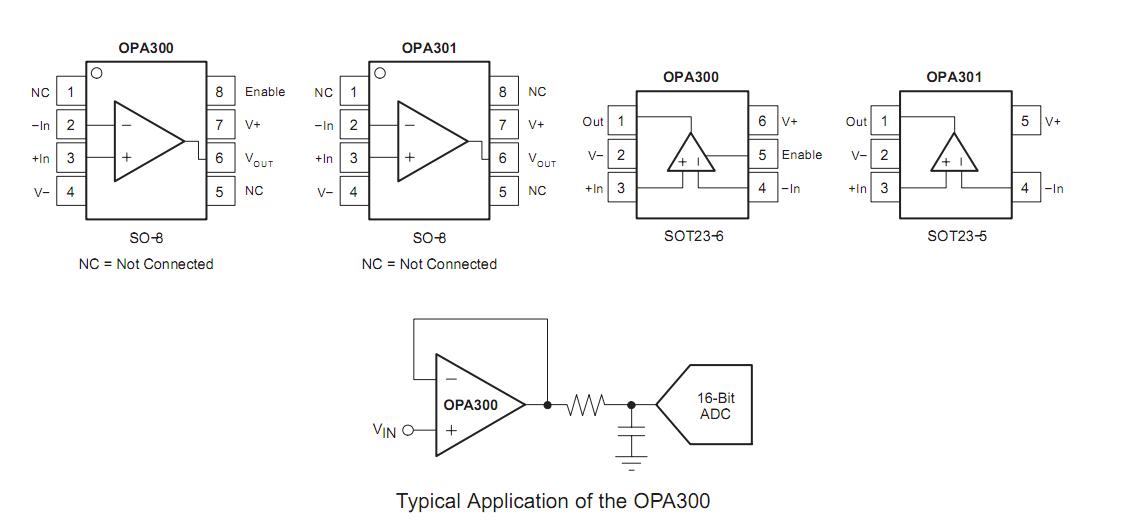

OPA300AID block diagram
