Product Summary
The OPA2345EA/250 is a rail-to-rail CMOS operational amplifier designed for precision, low- power, miniature applications. The OPA4344UA is unity gain stable. The OPA2345EA/250 is optimized to operate on a single supply from 2.5V and up to 5.5V with an input common-mode voltage range that extends 300mV beyond the supplies. Quiescent current is only 250μA (max). The applications of the OPA2345EA/250 include pcmcia cards, data acquisition, process control, audio processing, communications, active filters and test equipment.
Parametrics
OPA2345EA/250 absolute maximum ratings: (1)Supply Voltage, V+ to V-: 7.5V; (2)Signal Input Terminals, Voltage: (V–) –0.5V to (V+) +0.5V; Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature:–55℃ to +125℃; (5)Storage Temperature: –65℃ to +150℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃; (8)ESD Tolerance (Human Body Model): 4000V.
Features
OPA2345EA/250 features: (1)rail-to-rail input; (2)rail-to-rail output (within 1mV); (3)low quiescent current: 150μA typ; (4)microsize packages: SOT23-5, MSOP-8, TSSOP-14; (5)gain-bandwidth: 1MHz, G ≥ 1; (6)slew rate: 0.8V/μs; (7)THD + noise: 0.006%.

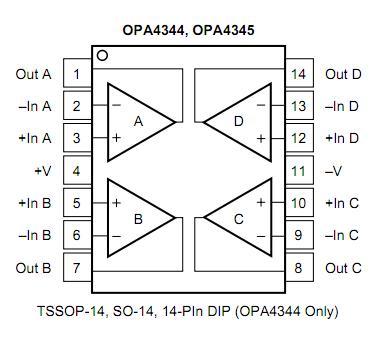

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

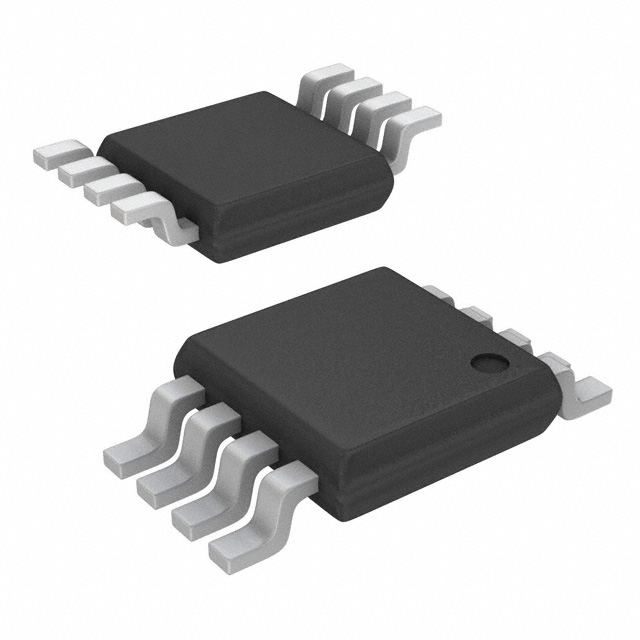

![]() OPA2345EA/250 |
![]() Texas Instruments |
![]() Operational Amplifiers - Op Amps Lo Pwr Single-Sply |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() OPA2345EA/250G4 |
![]() Texas Instruments |
![]() Operational Amplifiers - Op Amps Lo Pwr Single-Sply |
![]() Data Sheet |
![]()
|
|
