Product Summary

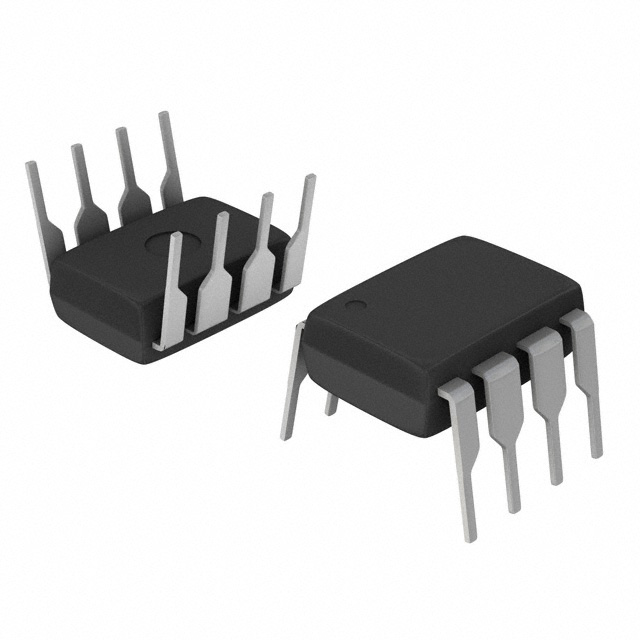

The OPA2336PA is a microPower CMOS operational amplifier designed for battery-powered applications. It operates on a single supply with operation as low as 2.1V. The output of the OPA2336PA is rail-to-rail and swings to within 3mV of the supplies with a 100kΩ load. The common-mode range extends to the negative supply-ideal for single-supply applications. Single, dual, and quad versions have identical specifications for maximum design flexibility. In addition to small size and low quiescent current (20μA/amplifier), the OPA2336PA features low offset voltage (125μV max), low input bias current (1pA), and high openloop gain (115dB). The applications of the OPA2336PA include battery-powered instruments, portable devices, high-impedance applications, photodiode pre-amps, precision integrators, medical instruments and test equipment.

Parametrics

OPA2336PA absolute maximum ratings: (1)Supply Voltage: 7.5V; (2)Signal Input Terminals, Voltage: (V–) –0.3V to (V+) +0.3V; Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃; (8)ESD Rating: Charged Device Model, OPA336 NJ and UJ only (CDM): 1000V; Human Body Model (HBM): 500V;Machine Model (MM): 100V.

Features

OPA2336PA features: (1)single-supply operation; (2)rail-to-rail output (within 3mv); (3)micropower: iq = 20μa/amplifier; (4)microsize packages; (5)low offset voltage: 125μv max; (6)specified from vs = 2.3v to 5.5v; (7)single, dual, and quad versions.

Diagrams

OPA2336PA pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPA2336PA
OPA2336PA
Texas Instruments
Operational Amplifiers - Op Amps Single-Supply MicroPower CMOS
Data Sheet
0-1: $1.63
1-25: $1.35
25-100: $1.19
100-250: $1.03
OPA2336PAG4
OPA2336PAG4
Texas Instruments
Operational Amplifiers - Op Amps Sgl-Supply MicroPwr CMOS Op Amp
Data Sheet
0-1: $1.60
1-25: $1.46
25-100: $1.17
100-250: $1.03
