MAX797ESE+T

MAX797ESE+T, high-performance, stepdown DC-DC converter, SOP, 36V, 50mA, Dallas Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.99~4.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.99~4.40

PartNumber:: MAX797ESE+T

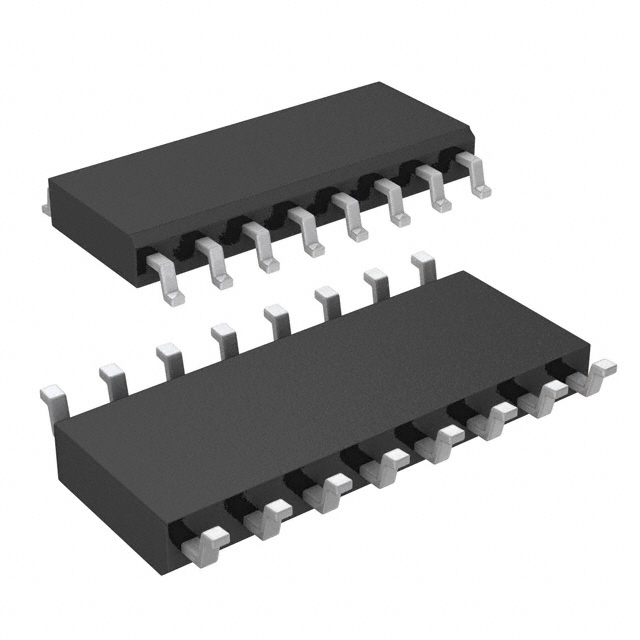

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MAX797ESE+T
US $1.99 - 4.40
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX797ESE+T is a high-performance, stepdown DC-DC converter with single or dual outputs provides main CPU power in battery-powered systems. The MAX797ESE+T achieves 96% efficiency by using synchronous rectification and Maxim’s proprietary Idle Mode control scheme to extend battery life at full-load (up to 10A) and no-load outputs. Excellent dynamic response corrects output transients caused by the latest dynamic-clock CPUs within five 300kHz clock cycles. The applications of the MAX797ESE+T include Notebook and Subnotebook Computers, PDAs and Mobile Communicators, Cellular Phones.

Parametrics

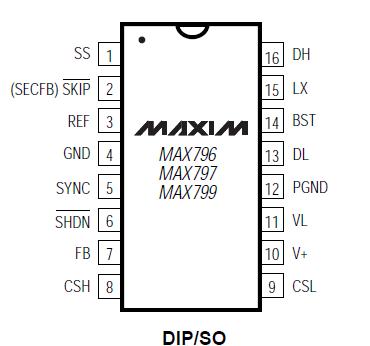

MAX797ESE+T absolute maximum ratings: (1)V+ to GND: -0.3V, +36V; (2)GND to PGND: ±2V; (3)VL to GND: -0.3V, +7V; (4)BST to GND: -0.3V, +36V; (5)DH to LX: -0.3V, BST + 0.3V; (6)LX to BST: -7V, +0.3V; (7)SHDN to GND: -0.3V, +36V; (8)SYNC, SS, REF, FB, SECFB, SKIP, DL to GND..-0.3V, VL + 0.3V CSH, CSL to GND: -0.3V, +7V; (9)VL Short Circuit to GN: Momentary; (10)REF Short Circuit to GND: Continuous; (11)VL Output Current: 50mA.

Features

MAX797ESE+T features: (1)96% Efficiency; (2)4.5V to 30V Input Range; (3)2.5V to 6V Adjustable Output; (4)Preset 3.3V and 5V Outputs (at up to 10A); (5)Multiple Regulated Outputs; (6)+5V Linear-Regulator Output; (7)Precision 2.505V Reference Output; (8)Automatic Bootstrap Circuit; (9)150kHz/300kHz Fixed-Frequency PWM Operation; (10)Programmable Soft-Start; (11)375μA Typ Quiescent Current (VIN = 12V, VOUT = 5V); (12)1μA Typ Shutdown Current.
