LT1790ACS6-4.096#TRPBF

reference, sot, 20V, LT1790ACS6-4.096#TRPBF, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.59~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.59~3.20

PartNumber:: LT1790ACS6-4.096#TRPBF

Brand:: Linear Technology - Linear | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LT1790ACS6-4.096#TRPBF
US $1.59 - 3.20
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

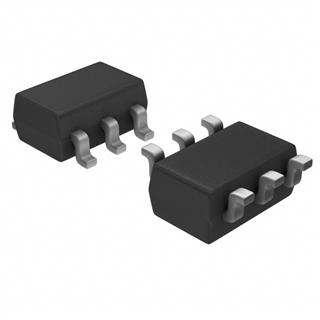

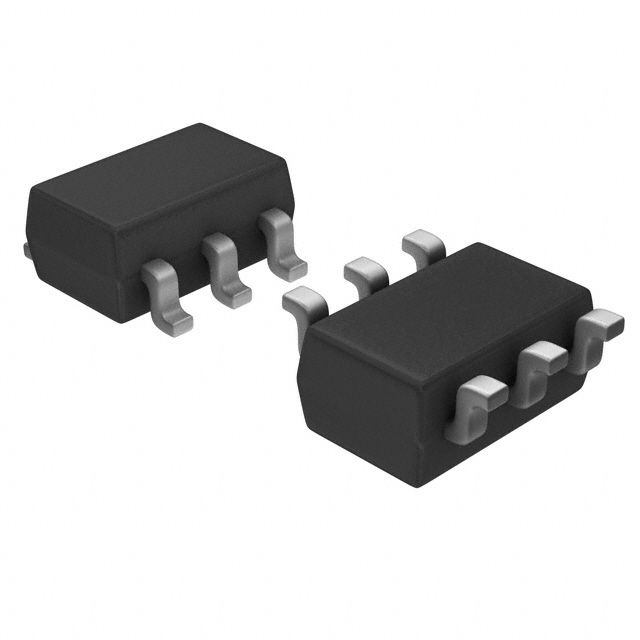

The LT1790ACS6-4.096#TRPBF is a SOT-23 micropower low dropout reference that combines high accuracy and low drift with low power dissipation and small package size. These micropower references use curvature compensation to obtain a low temperature coefficient and trimmed precision thin-film resistors to achieve high output accuracy. In addition, it is post-package trimmed to greatly reduce the temperature coefficient and increase the output accuracy. Output accuracy is further assured by excellent line and load regulation. Special care has been taken to minimize thermally induced hysteresis.

Parametrics

LT1790ACS6-4.096#TRPBF absolute maximum ratings: (1)Input Voltage: 20V; (2)Specified Temperature Range: Commercial: 0℃ to 70℃; Industrial: –40℃ to 85℃; (3)Output Short-Circuit Duration: Indefinite; (4)Operating Temperature Range: – 40℃ to 125℃; (5)Storage Temperature Range: – 65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1790ACS6-4.096#TRPBF features: (1)High Accuracy; (2)Low Drift; (3)Low Profile (1mm) ThinSOTTM Package; (4)Low Supply Current: 60mA Max; (5)Sinks and Sources Current; (6)Low Dropout Voltage; (7)Guaranteed Operational –40℃ to 125℃; (8)Wide Supply Range to 18V; (9)Available Output Voltage Options: 1.25V, 2.048V, 2.5V, 3V, 3.3V, 4.096V and 5V.
