Product Summary
The LMV931QDCKRQ1 is a CMOS low voltage operational amplifier which can operate on single sided power supplies (1.8 V to 5.0 V) with rail to rail input and output swing. The LMV931QDCKRQ1 comes in small state of the art packages and requires very low quiescent current making it ideal for battery-operated, portable applications such as notebook computers and hand-held instruments. Rail-to-Rail operation provides improved signal-to-noise performance plus the small packages allow for closer placement to signal sources thereby reducing noise pickup. The typical applications of the LMV931QDCKRQ1 include Notebook Computers, Portable Battery-Operated Instruments, PDA’s and Active Filters, Low-Side Current Monitoring.
Parametrics
LMV931QDCKRQ1 absolute maximum ratings: (1)VS, Supply Voltage: 5.5 V; (2)VIDR, Input Differential Voltage: ±Supply Voltage; (3)VICR, Input Common Mode Voltage Range: -0.5 to (V+) + 0.5 V; (4)aximum Input Current: 10 mA; (5)TJ, Maximum Junction Temperature: 150℃; (6)θJA, Thermal Resistance: 238℃/W; (7)Tstg, Storage Temperature: -65 to 150℃; (8)Mounting Temperature (Infrared or Convection≤30 sec): 260℃.
Features
LMV931QDCKRQ1 features: (1)Performance Specified on Single?Sided Power Supply: 1.8 V, 2.7 V, and 5 V; (2)Small Packages: SC?70; (3)No Output Crossover Distortion; (4)Extended Industrial Temperature Range: -40 to +125℃; (5)Low Quiescent Current 210μA, Max Per Channel; (6)No Output Phase Reversal from Overdriven Input; (7)These are Pb?Free Devices.

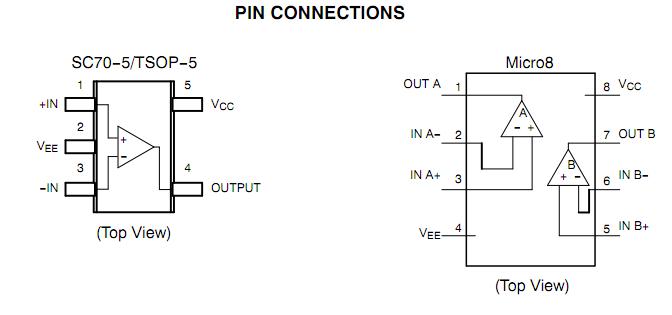

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

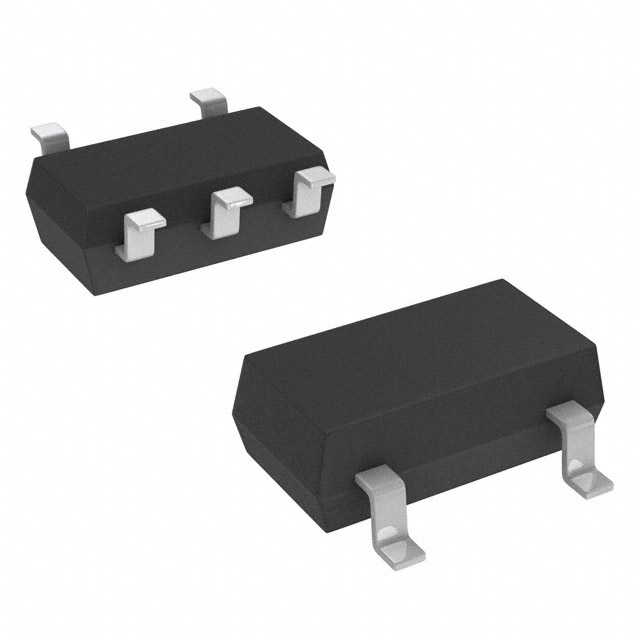

LMV931QDCKRQ1 |
Texas Instruments |
Operational Amplifiers - Op Amps Auto Cat Sgl 1.8V Op Amp |
Data Sheet |
Negotiable |
|
|||||||
