Product Summary

The LMP7731MFX/NOPB is a single, low offset voltage, rail-to-rail input and output precision amplifier with a CMOS input stage and a wide supply voltage range. It is part of the LMP. precision amplifier family and is ideal for sensor interface and other instrumentation applications. The LMP7731MFX/NOPB is built utilizing VIP50 technology, which allows the combination of a CMOS input stage and a 12V common mode and supply voltage range. This makes it a great choice in many applications where conventional CMOS parts cannot operate under the desired voltage conditions. The LMP7731MFX/NOPB has a rail-to-rail input stage that significantly reduces the CMRR glitch commonly associated with rail-torail input amplifiers. This is achieved by trimming both sides of the complimentary input stage, thereby reducing the difference between the NMOS and PMOS offsets. The output of the LMP7731MFX/NOPB swings within 40 mV of either rail to maximize the signal dynamic range in applications requiring low supply voltage. It is offered in space saving SOT23-5.

Parametrics

LMP7731MFX/NOPB absolute maximum ratings: (1)ESD Tolerance, Human Body Model: 2 kV; Machine Model: 200V; (2)VIN Differential: ±300 mV; (3)Supply Voltage (VS = V+ – V-): 13.2V; (4)Voltage at Input/Output Pins: V++ 0.3V, V- - 0.3V; (5)Input Current: 10 mA; (6)Storage Temperature Range: -65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Infrared or Convection (20 sec): 235℃; (9)Wave Soldering Lead Temp. (10sec): 260℃.

Features

LMP7731MFX/NOPB features: (1)Input offset voltage: ±200 μV (max); (2)Input bias current: 300 fA; (3)Input voltage noise: 12 nV/; (4)CMRR: 100 dB; (5)Open loop gain: 130 dB; (6)Temperature range: –40 to 125℃; (7)Unity gain bandwidth: 2.5 MHz; (8)Supply current: 715 μA; (9)Supply Voltage Range: 2.7V to 12V.

Diagrams

LMP7731MFX/NOPB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

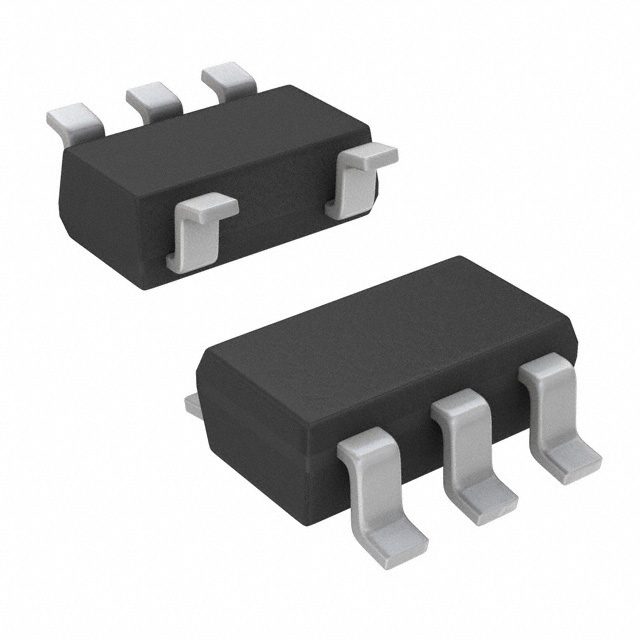

LMP7731MFX/NOPB
LMP7731MFX/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-2410: $0.71
2410-3000: $0.70
