Product Summary

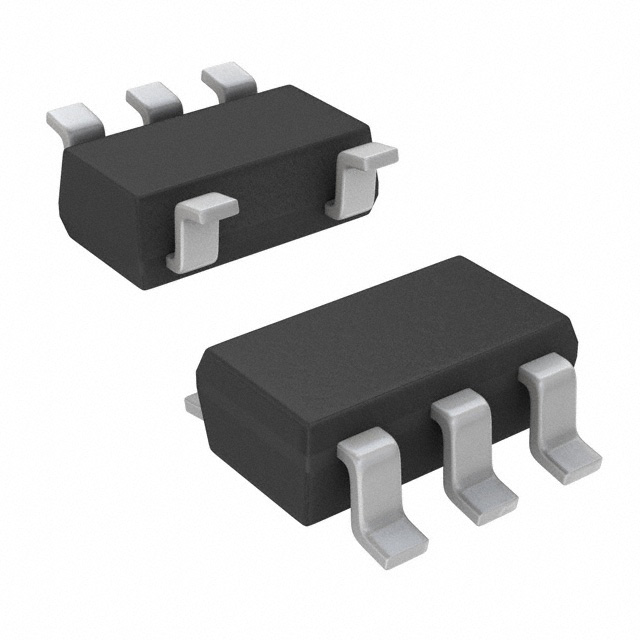

The LM3460M5X-1.5 is a monolithic integrated circuit designed for precision control of GTLplus and GTL Bus termination. This controller is available in a tiny SOT23-5 package, and includes an internally compensated op amp, a bandgap reference, an NPN output transistor, and voltage setting resistors. The applications of the LM3460M5X-1.5 are (1)GTL bus termination (1.2V output 7A); (2)GTLp bus termination (1.5V output 7A); (3)Adjustable high-current linear regulator.
Parametrics
LM3460M5X-1.5 absolute maximum ratings: (1)Input Voltage VIN: 20V; (2)Output Current: 20 mA; (3)Junction Temperature: 150℃; (4)Storage Temperature: -65 to +150℃; (5)Power Dissipation: 300 mW; (6)ESD Susceptibility: 1500V.
Features
LM3460M5X-1.5 features: (1)Precision output (1%); (2)Output voltage can be adjusted; (3)Extremely fast transient response in GTLp and GTL bus termination; (4)Tiny SOT23-5 package; (5)Output voltage capability for GTL or GTLp; (6)Low temperature coefficient.

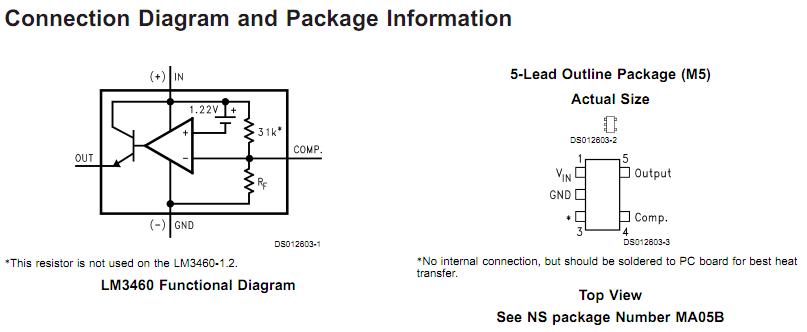

Diagrams
