LM3402MMX/NOPB

0.5A, Constant Current Buck Regulator, 8-PSOP, -0.3V to 45V, LM3402MMX/NOPB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.17~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.17~0.55

PartNumber:: LM3402MMX/NOPB

Brand:: National Semiconductor - NS | Pack: MSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LM3402MMX/NOPB
US $0.17 - 0.55
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

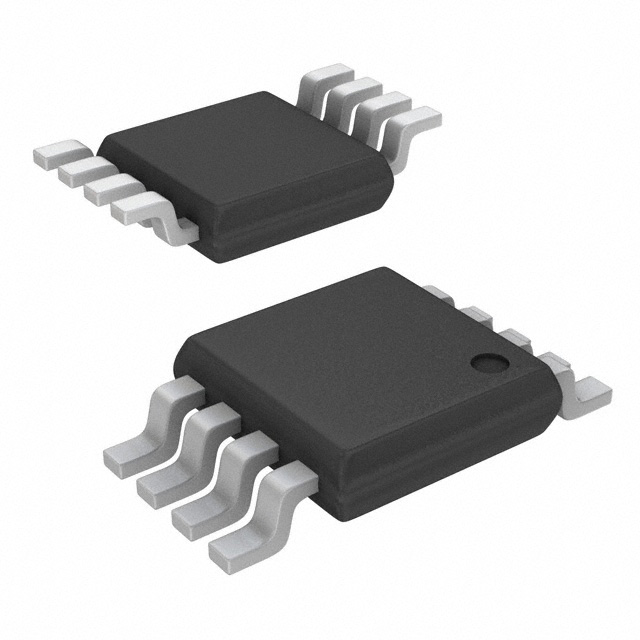

The LM3402MMX/NOPB is a monolithic switching regulator designed to deliver constant currents to high power LEDs. Ideal for automotive, industrial, and general lighting applications, the LM3402HVMRX+ contains a high-side N-channel MOSFET switch with a current limit of 735 mA (typical) for step-down (Buck) regulators. The applications of LM3402MMX/NOPB are: LED Driver, Constant Current Source, Automotive Lighting, General Illumination, Industrial Lighting.

Parametrics

LM3402MMX/NOPB absolute maximum ratings: (1)VIN to GND: -0.3V to 45V; (2)BOOT to GND: -0.3V to 59V; (3)SW to GND: -1.5V; (4)BOOT to VCC: -0.3V to 45V; (5)BOOT to SW: -0.3V to 14V; (6)VCC to GND: -0.3V to 14V; (7)DIM to GND: -0.3V to 7V; (8)CS to GND: -0.3V to 7V; (9)RON to GND: -0.3V to 7V; (10)Junction Temperature: 150℃; (11)Storage Temp. Range: -65℃ to 125℃; (12)ESD Rating (Note 2): 2kV; (13)Lead Temperature (Soldering, 10sec): 260℃; (14)Infrared/Convection Reflow (15sec): 235℃.

Features

LM3402MMX/NOPB features: (1)Integrated 0.5A N-channel MOSFET; (2)VIN Range from 6V to 42V (LM3402); (3)VIN Range from 6V to 75V (LM3402HV); (4)500 mA Output Current Over Temperature; (5)Cycle-by-Cycle Current Limit; (6)No Control Loop Compensation Required; (7)Separate PWM Dimming and Low Power Shutdown; (8)Supports all-ceramic output capacitors and capacitor-less outputs; (9)Thermal shutdown protection; (10)MSOP-8, PSOP-8 Packages.
