Product Summary

The ERA-4SM+ is a monolithic amplifier with 50Ω broadband DC to 8 GHZ.

Parametrics

ERA-4SM+ absolute maximum ratings: (1)operating temperature: -45 to 85℃; (2)storage temperature: -65 to 150℃.

Features

ERA-4SM+ features: (1)Low thermal resistance; (2)Miniature microwave amplifier; (3)Frequency range, DC to 8 GHz, usable to 10 GHz; (4)Up to 18.4 dBm typ. (16.5 dBm min) output power.

Diagrams

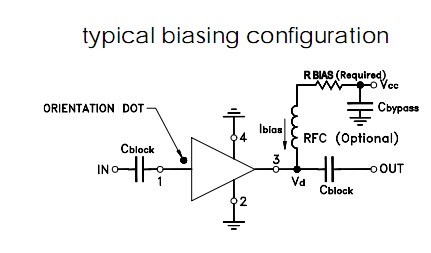

ERA-4SM+ typical configuration
