Product Summary

The BTS441TG is a Smart Highside Power Switch. N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS/E technology. It provides embedded protective functions. The applications of the BTS441TG are μC compatible power switch for 5V, 12 V and 24 VDC applications, All types of resistive, inductive and capacitve loads, Most suitable for loads with high inrush currents, so as lamps, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS441TG absolute maximum ratings: (1)Supply voltage:43V; (2)Supply voltage for full short circuit protection:34V; (3)Load dump protection:60V; (4)Load current:self-limited; (5)Operating temperature range:-40℃ to +150℃; (6)Storage temperature range:-55℃ to +150℃; (7)Power dissipation:125W; (8)Maximal switchable inductance, single pulse:2.1mH; (9)Electrostatic discharge capability (ESD): IN:1.0kV, Out to all other pins shorted:8.0kV; (10)Input voltage (DC):-10V to +16V; (11)Current through input pin (DC):±2.0mA.

Features

BTS441TG features: (1)Very low standby current ; (2)Optimized static electromagnetic compatibility (EMC) ; (3)μC and CMOS compatible ; (4)Fast demagnetization of inductive loads ; (5)Stable behaviour at undervoltage ; (6)Short circuit protection ; (7)Current limitation ; (8)Overload protection ; (9)Thermal shutdown ; (10)Overvoltage protection (including load dump) with external GND-resistor ; (11)Reverse battery protection with external GND-resistor ; (12)Loss of ground and loss of Vbb protection ; (13)Electrostatic discharge (ESD) protection.

Diagrams

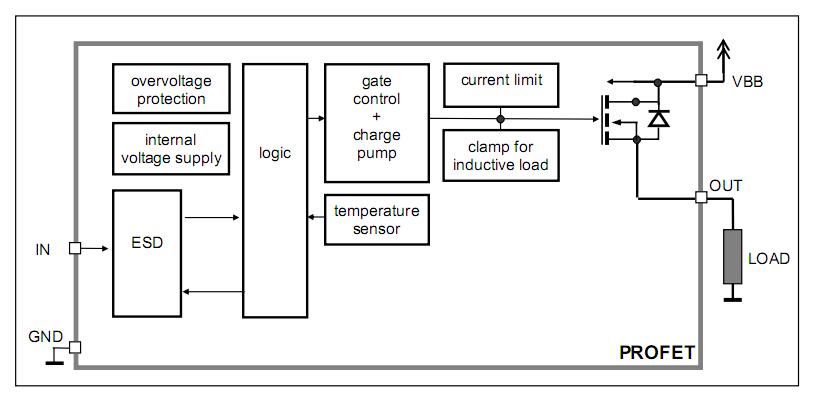

BTS441TG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTS441TG
BTS441TG
Infineon Technologies
Power Switch ICs - POE / LAN Smart PWR High-Side Switch 1-CH
Data Sheet
0-490: $1.88
490-500: $1.53
500-1000: $1.29
1000-2000: $1.22
BTS441TGNT
BTS441TGNT
Infineon Technologies
Power Switch ICs - POE / LAN SMART HI SIDE POWER SWITCH N-CH 41V
Data Sheet
Negotiable
