BQ24022DRCR

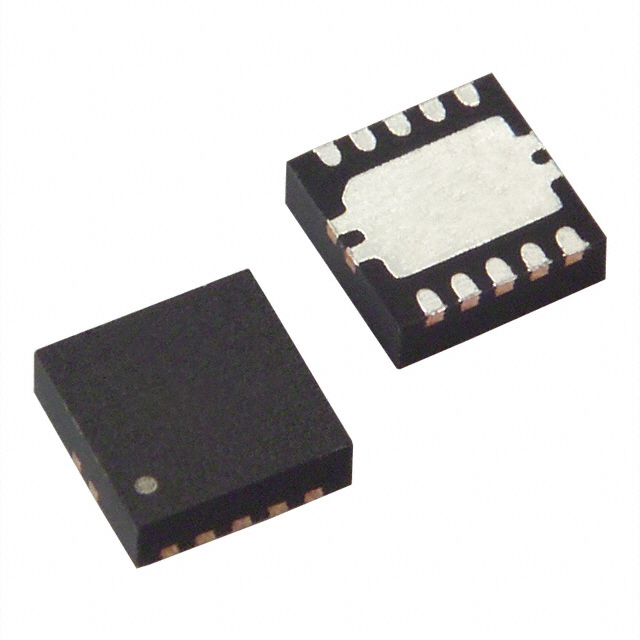

Li-ion linear charger, BQ24022DRCR, 16-QFN, 4.35 V ~ 26 V, 1.5A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.87~1.57 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.87~1.57

PartNumber:: BQ24022DRCR

Brand:: Texas Instruments - TI | Pack: SON | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:BQ24022DRCR
US $0.87 - 1.57
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BQ24022DRCR is an integrated Li-ion linear charger and system power path management device targeted at space-limited portable applications. The BQ24022DRCR operates from either a USB port or AC adapter and support charge currents up to 1.5A. The input voltage range with input overvoltage protection supports unregulated adapters. The USB input current limit accuracy and start up sequence allow the BQ24022DRCR to meet USB-IF inrush current specification. Additionally, the input dynamic power management (V IN -DPM) prevents the charger from crashing incorrectly configured USB sources. The applications of the BQ24022DRCR include Smart Phones, Portable Media Players, Portable Navigation Devices and Low-Power Handheld Devices.

Parametrics

BQ24022DRCR absolute maximum ratings: (1)VI, Input Voltage: -0.3 to 28V at IN (with respect to VSS); -0.3 to 5V at BAT (with respect to VSS); -0.3 to 7V at OUT, EN1, EN2, CE , TS, ISET, PGOOD , CHG , ILIM, TMR, ITERM, SYSOFF, TD (with respect to VSS); (2)II, Input Current: 1.6 A; (3)IO, Output Current (Continuous): OUT 5 ; BAT (Discharge mode) 5 A; BAT (Charging mode) 1.5A; (4)Output Sink Current: 15 mA; (5)TJ, Junction temperature: –40 to 150℃; (6)Tstg, Storage temperature: –65 to 150℃.
