ADG3304BCBZ-REEL7

4-Channel bidirectional level translator, -0.3 V to +7 V, 5μA, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.90

PartNumber:: ADG3304BCBZ-REEL7

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-16

From Other Seller

Part Number:ADG3304BCBZ-REEL7
US $0.90 - 1.90
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

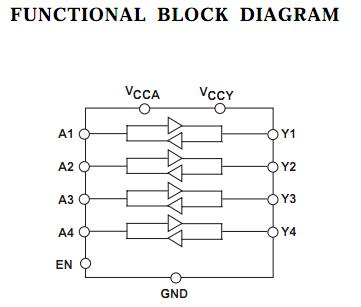

The ADG3304BCBZ-REEL7 is a 4-Channel bidirectional level translator. Its function is to provide level shifting in a multi-voltage system. The voltage applied to VCCA sets up the logic levels on the A side of the device, while VCCY sets the levels on the Y side. In this way, signals applied to the VCCA side of the device appear as VCCY compatible logic on the other side of the device and vice versa as the ADG3304BCBZ-REEL7 is designed to handle bidirectional signals. The device is guaranteed for operation over the supply range 1.2 V to 5.5 V. The applications of the ADG3304BCBZ-REEL7 are SPI, Microwire and I2C Translation, Low Voltage ASIC level Translation, Smart Card Readers, Cell Phones & Cell-Phone Cradles, Portable Communication Devices, Telecommunicatons Equipment, Network Switches and Routers, Storage Systems (SAN/NAS), Computing/Server Applications, GPS, Portable POS Systems and Low Cost Serial Interfaces.

Parametrics

ADG3304BCBZ-REEL7 absolute maximum ratings: (1)VCCY to GND: -0.3 V to +7 V; (2)VCCA to GND: -0.3 V to +7 V; (3)Digtal Inputs (A): -0.3 V to (VCCA +0.3V); (4)Digtal Inputs (Y): -0.3 V to (VCCY +0.3V); (5)EN to GND: -0.3 V to +7 V; (6)Operating Temperature Range: –40 to +85℃; (7)Storage Temperature Range: –65 to +150℃; (8)Junction Temperature: 150℃; (9)θJA Thermal Impedance: 150℃/W; (10)Lead Temperature, Soldering (10seconds): 300℃; (11)IR Reflow, Peak Temperature (<20 seconds): +235℃.

Features

ADG3304BCBZ-REEL7 features: (1)Bidirectional Level Translation; (2)Operates from 1.2 V to 5.5 V; (3)12 Bump WLCSP package and 14-lead TSSOP; (4)Low Quiescent Current <5μA.
