AD1871YRSZ-REEL

stereo audio ADC, SOP, – 0.3 AVDD + 0.3 V, 96 kHz Sample Rates, On-Chip Reference

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.90~5.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.90~5.90

PartNumber:: AD1871YRSZ-REEL

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-27

From Other Seller

Part Number:AD1871YRSZ-REEL
US $3.90 - 5.90
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

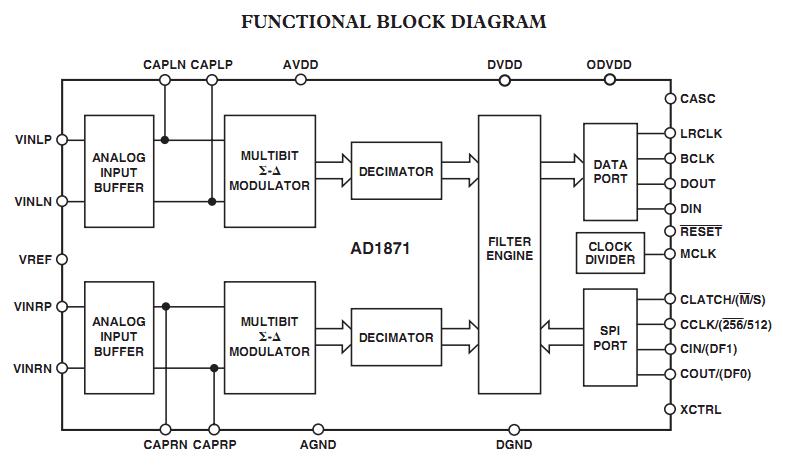

The AD1871YRSZ-REEL is a stereo audio ADC intended for digital audio applications requiring high performance analog-to-digital conversion. The AD1871YRSZ-REEL features two 24-bit conversion channels each with programmable gain amplifier (PGA), multibit sigma-delta modulator, and decimation filters. Each channel provides 105 db of dynamic range, making the AD1871YRSZ-REEL suitable for applications such as digital audio recorders and mixing consoles. The applications of the device include Professional Audio, Mixing Consoles, Musical Instruments, Digital Audio Recorders, Including CD-R, MD, DVD-R, DAT, HDD, Home Theater Systems, Automotive Audio Systems and Multimedia.

Parametrics

AD1871YRSZ-REEL absolute maximum ratings: (1)DVDD to DGND and ODVDD to DGND: 0 6 V; (2)AVDD to AGND: 0 6 V; (3)Digital Inputs DGND: – 0.3 DVDD + 0.3 V; (4)Analog Inputs AGND: – 0.3 AVDD + 0.3 V; (5)AGND to DGND: –0.3 +0.3 V; (6)Reference Voltage: Indefinite Short Circuit to Ground; (7)Soldering (10 sec): 300℃.

Features

AD1871YRSZ-REEL features: (1)5.0 V Stereo Audio ADC with 3.3 V Tolerant Digital Interface; (2)Supports 96 kHz Sample Rates; (3)Supports 16-/20-/24-Bit Word Lengths; (4)Multibit Sigma-Delta Modulators with Perfect Differential Linearity Restoration for Reduced Idle Tones and Noise Floor; (5)105 dB (Typ) Dynamic Range; (6)Supports 256/512 and 768 fS Master Clocks; (7)Flexible Serial Data Port: Allows Right-Justified, Left-Justified, I2S Compatible and DSP Serial Port Modes; Cascadable (up to Four Devices) from a Single DSP SPORT; (8)Device Control via SPI Compatible Serial Port or Optional Control Pins; (9)On-Chip Reference; (10)28-Lead SSOP Package.
